Xtool X-100 C X100C for iOS and Android Auto Key Programmer




159 reward points
Qty: Unit(s)
Related Download Files:

Xtool X-100 C X100C for iOS and Android Auto Key Programmer

X100-C Key Program Introduction

TheX-100 C is a perfect on-board key programmer tool that sp eci alized build for Fo-rd,M-azda,Peug-eot and Citr-oen.

X-100 C for iOS and Android Highlights

1.2 in 1 auto key programmer and pin code reader for Ford, Mazda, Peugeot and Citroen
2.Can Work with iOS and Android System by Bluetooth Connection, easier to operate
3.Free Update on XtoolC APP
4.Multilanguage Supported.
5.Easy to use,100% working

Xtool X100C key programmer & pin code reader Usage Tips

1.Please activate X100C before programming keys

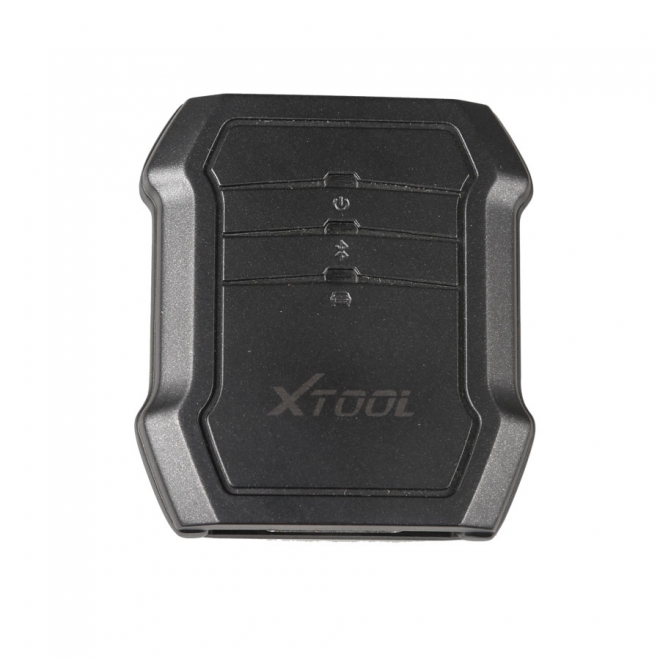

2.Power Indicator : It turns green when power is on.
Bluetooth Indicator : It turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3.Vehicle Indicator : When X100C is connected with vehicle successfully, it turns green.
4.DB15 connector : Connect the vehicle via test cable.
5.X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.

X100C X100-C Key Program Features

Works with four brand cars, they are Ford,Mazda,Peugeot,Citroen and DS
Bluetooth auto-reconnection,Once the Bluetooth is paired,you dont need to input the code to
pair with your phone anymore,the device will reconnect with your phone automatically.
Connection via Bluetooth (Android and IOS).
Free update : Download latest XtoolC App with new features from Google Play or Apple Store.
Multi Languages Supported.
Support both iOS and Android.

X100C Key Program Function Guide

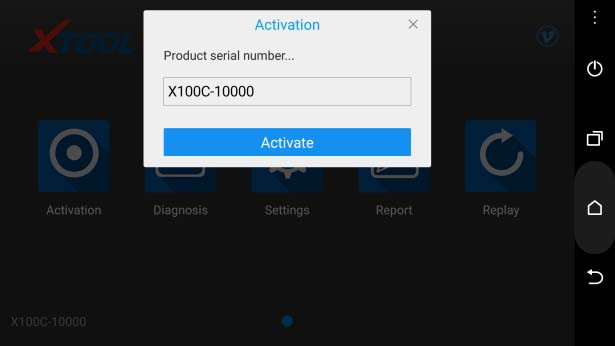

Activation: Please activate X100C before you use it to program keys. Input the serial number and press “Activate”.

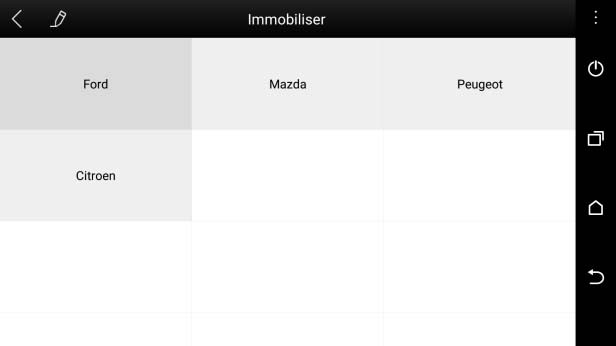

Immobilizer: Enter "Immobilizer" to choose brand firstly,then go on programming,Choose the regional market,Choose model.

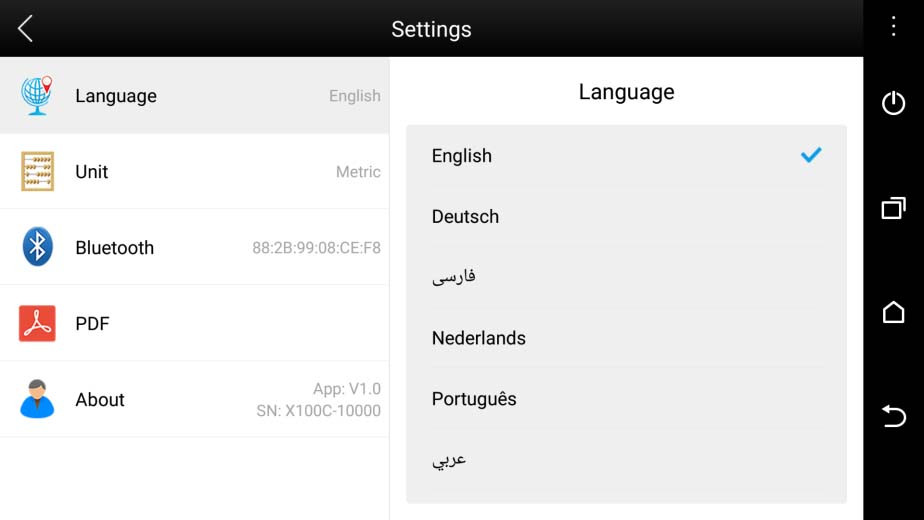

Settings: By selecting Setting, users can set the language, unit and other system related options:
- Language: Select the language. Please tick the required option from the multi-language options on the right.
- Bluetooth: Enter the Bluetooth setting and pair the phone Bluetooth with X100C -xxxxx Bluetooth
- PDF: input and store user’s information to be printed in the PDF report.
- About: Users can read the software version and serial number here.


Report: It provides data flow during vehicle key programming.

Replay: It replays the data flow during vehicle key programming.

X-100 C for iOS and Android Package List

1pc x  X100 C Auto Key Programmer
1pc x  OBD II cable
