XTOOL EZ300 EZ 300 WIFI 4 Systems Diagnosis Tool 2 Years Warranty

XTY14376

1.8Kg
Free Shipping

$329.00

329 reward points

Shipping Agent




Qty: Unit(s)
Related Download Files:
xtool-ez300-four-system-diagnosis-user-manual.pdf  (1975.4K)



XTOOL EZ300 EZ 300 4 Systems Diagnosis Tool with TPMS and Oil Light Reset Function Free Online Update

XTOOL EZ300 Introduction:
Model name:XTOOL EZ300
Software Version:Newest
Update:One-click update via WIFI
Car Models:For Universal cars
Languages:English
Functions:Diagnostic interface
Connection:By OBD2.

EZ300 Description:

XTOOL EZ300 supports 4 system diagnosis: Engine, ABS, SRS, Transmission and TPMS
EZ300 scanner basic function is read fault codes, clear fault codes, live data,get accurate live data in both Wave and Dashboard form.

XTOOL EZ300 Features:

1. Easy registration with EZ300 connected to WIFI, One-click software update via WIFI,free update for lifetime
2. Wireless diagnosis via Bluetooth, Remote access
3. Diagnosis reports in PDF file
4. Record and playback live data
5. 7 inch multi-touch screen, On-board battery
6. Extensive vehicle coverage for most US, Asian and European vehicle makes
7. Comes with 2 years warranty
8. Easy registration with EZ300 connected to WIFI. Don’t bother to use PC for registration.
9. Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.

XTOOL EZ300 vehicle list:

American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

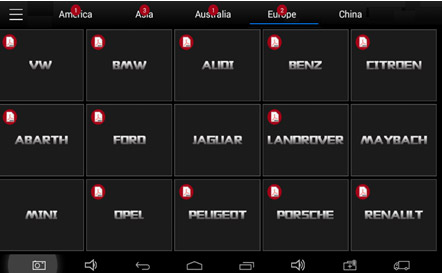

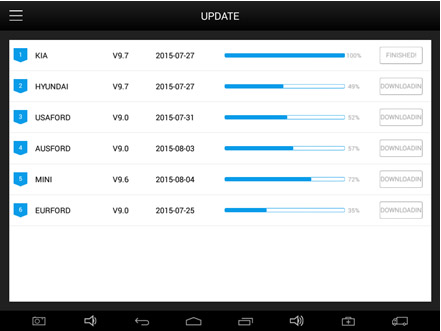

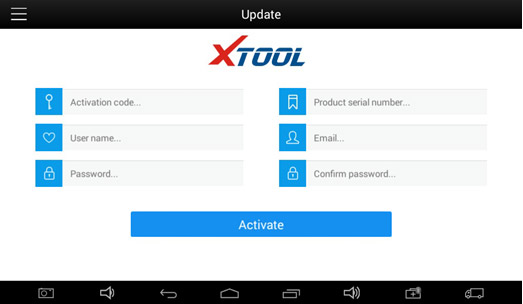

EZ300 Screen Shot:

Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.3 GHz
Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, MiniHDMIPort, 2.0USBPort, TF Card Port
Battery:  2400mAh, 3.7V
WIFI WIFI 2.4Ghz
Bluetooth 100 Meters
Power Voltage:  3.7V
Power Consumption: 4W
Operating Temperature:  -20 to 50℃(-4 to 126℉)
Humidity: <90%
Dimension:  (L*W*H): 208*140*15.5mm

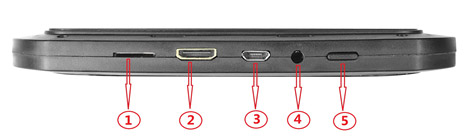

Layout of EZ300:

1.SD CardPort: up to 32GB extension SD card
2.HDMIPort: Compatible with HDMI
3.Micro USB: Battery charge or data synchronization with PC.
4.AudiPort: For headphone
5.Power Button: Power on or off

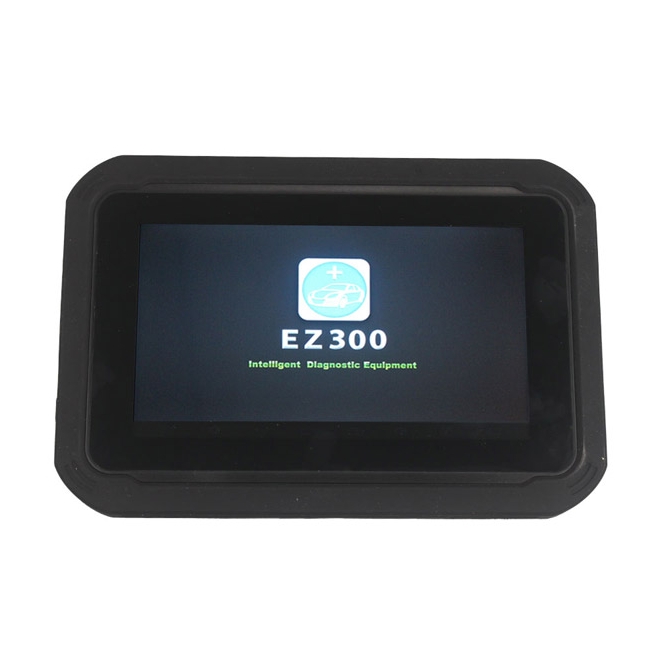

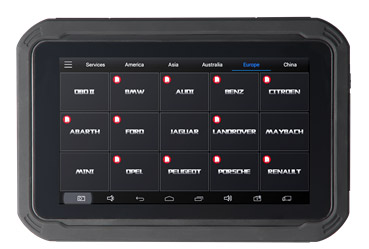

Front View of EZ300 Tablet

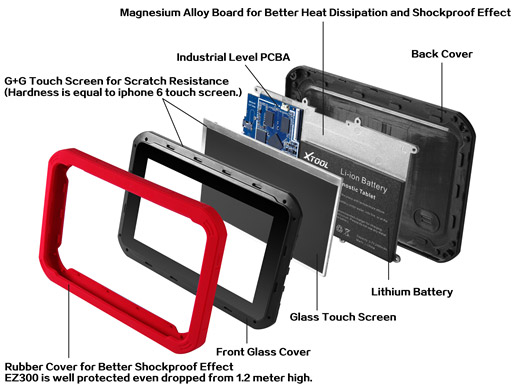

EZ300 Exploded Diagram

Layout of EZ300 VCI box

1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.
EZ300 VCI

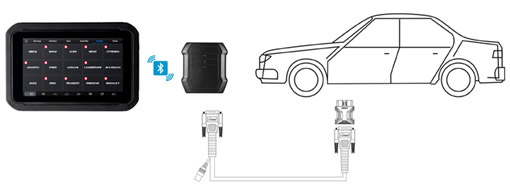

How to connect EZ300 with cars?


XTOOL EZ300 Package including:

1pc X OBD II-16
1pc X Main Cable
1pc X EZ300 Tablet
1pc X VCI Box
1pc X Charger for Tablet
1pc X US Power Adapter
1pc X EU  Power Adapter
1pc X MicroUSB Cable
1pc X Certificate of Quality
1pc X Packing List
1pc X User Manual
1pc X Carton box
