WIFI BMW ICOM A2+B+C Diagnostic and Programming Tool With HDD

BMW ICOM A2+B+C Introduction:

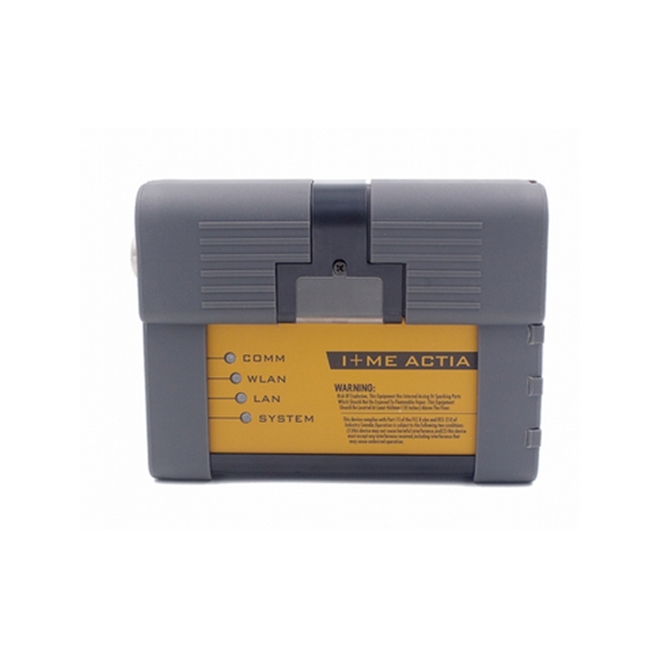

Model name:BMW ICOM A2
Software Version:2016.03
Update:By HDD
Car Models:Supports BMW and MINI vehicles from old to latest 2015
Languages:English/German/Chinese
Functions:Diagnostic interface
Connection:By OBD2.
Computer requirements:Supports almost 95% laptop in the world with Intel chip( I3/I5/I7 series) and have 4GB memory,system need be WIN7 or WIN8,cannot be others.

Install/User Note:

1. HDD Version: V2016.3 WIN8.WIN7 System HDD is not support wifi,please notice.
2. Equipped with WIFI Adapter for wireless function,directly use,no need setting.
3. Supports for a new Intel adapter function,diagnose and reprogramming function.
4. When doing programming function, please use Wlan cable to connect the device and laptop, do not use Wifi connection.
5. No Network And No Connection With The Original Server When You Use The BMW ICOM Software HDD, Otherwise It Will Be Damaged, And Have To Send Back For Repair.

Software version:
ISTA-D:3.54.12
ISTA-P: 3.58.0.500
VIN: 2016.02.15

Haraware Version:
ICOM-PF-CORE 03.14.03
ICOM-Boot: 01.25.02
ICOM-Application: 01.40.05

ICOM A2 System Requirements:

1. Dual-Core Processor, recommended I3 above.
2. More than 4G of memory.
3. we recommend Lenovo ThinkPad X200, X230, X230T, X61T, T410, X61,Dell D630, E49 etc.

ICOM A2+B+C Special Features Compared with ICOM:

1. The modified ICOM A2 for vehicles with OBD access receives a significantly more powerful processor and more storage capacity.
2. Robust aluminium case will help to avoid damage when using in harsh environments.
3. To protect the MOST connector, the ICOM B for vehicles with optical MOST access will be equipped with a soft cover made of rubber instead of the former plastic cap.
4. The ICOM C for old series with a diagnostics socket will be additionally equipped with an approx. 20 cm long cable, which facilitates the connection of the ICOM A2 and makes storage in the engine compartment easier.
5. BMW ICOM A2+B+C supports BMW cars till 2015 year. Supports BMW & MINI full system diagnose and offline programming.

ICOM A2+B+C Functions:

1. A2 - OBD diagnostic supporting MOST, D-CAN and K-CAN protocols
2. B - diagnostic via MOST bus, and have connection to A-interface via USB connection.
3. C - 20-pin cable for old models.

How to install/configure BMW ICOM USB WIFI D-link?
(If you cannot set it well,you can buy a new wifi adapter directly from us)

1. Insert WIFI USB D-link into the computer via USB port


2. Turn off the computer built-in WIFI or additional WIFI resources. Make sure only BMW ICOM WIFI USB exist on the computer. Meanwhile, disable both Internet network and local area connection.
3. Then power on computer.
4. Open “Network Connections” program to check there is no other existing Internet and Local Area connection.


NOTE: Do not disable DWA-131 which is the ICOM WIFI USB. If it displays “X” mark, ignore it.
5. Run BMW ICOM Rheingold ISTA-D ISTA-P software, tick “WIFI for ICOM”


6. Connect BMW ICOM A2 emulator connector with vehicle. Wait 20-60 seconds until the BMW ICOM A2 WLAN indicator stops flashing or flashes slowly which indicates that well communication is built between WIFI USB adapter and BMW ICOM A2 WIFI.

7. Start using BMW ICOM ISTA-D diagnostic or ISTA-P programming software. Press OK to continue.


8. The ISTA-D, ISTA-P, ISPI, ISSS etc program cannot be turn off, but only be miniaturized.


9. The WIFI BMW ICOM diagnostic system device is recognized by computer. WIFI wireless diagnostic and programming function are activated.


What should you pay attention for usage:

1) Password: New hdd does not have hdd password. For old version hdd. First password is "BMW", just ignore second password, do not fill anything
2) Software for HDD is encrypted. Do not change anything setup on this software. Such as crack the software, or copy the software of hdd to other place, or change display Mode, such as some part is Hidden, do not change it display status. Just directly install and use the software.
3) No Network And Also No Connection With The Original Server When You Use The BMW ICOM Software HDD, Ortherwise It Is Will Be Damaged,And Need You Send Back For Repair
4) It comes with D-link adapter and Software HDD, they have the same serial number, you must use the software HDD and D-link together. HDD and D-LINK works together only when they have the same serial number. If you lost anyone of them, you need to buy the new set.

How to change the language for BMW ICOM diagnostic tool?

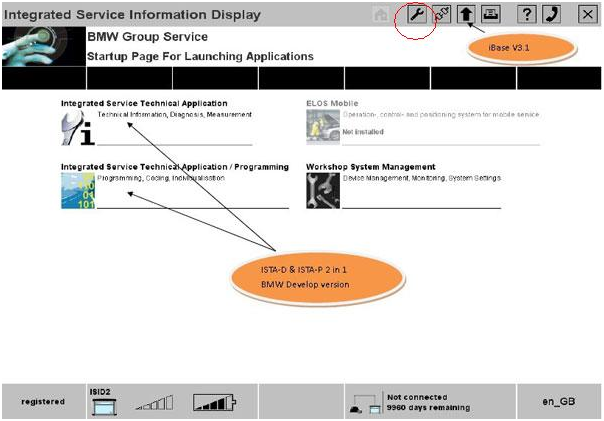

1) Enter the BMW icom software, you will see this interface, click the icon which appearance is wrench, then you will see the other language:

Then choose the language you want:


ICOM A2+B+C Package List:

1pc x ICOM A2 Interface for BMW
1pc x ICOM B Most for BMW
1pc x 20pin Cable for BMW
1pc x USB Cable
1pc x OBD2 Cable
1pc x LAN Cable
1pc x D-link USB WIFI adapter
1pc x Software HDD
