VAS5054A OKI Bluetooth Full Chip for Audi/VW Diagnostic Tool


Free Shipping


66 reward points

Shipping Agent

Qty: Unit(s)
Related Download Files:
VAS-5054A-user-manual.pdf  (1632.9K)
VAS-5054A-vehicle-list.pdf  (66K)

VAS5054A V4.4.0 Support OKI Bluetooth for Audi/VW Diagnostic Tool Full Chip

How to install Bluetooth VAS 5054A Software


VAS5054A Introduction:
Model name:VAS 5054A
Software Version : ODIS v4.4.0
Update:By link
Car Models:VW, AUDI, SKODA, SEAT, Bently and Lamborghini till 2016.
Functions:Diagnostic interface
Connection:By OBD2.
Support Protocol:Full Chip With OKI Chip,support UDS Protocol

Install/User Note:
1. Bluetooth Version,Password: 082145725
2. This VAS 5054A can't be ONLINE updated, or it may be damaged. We will send you download link to update if there is new software version.
3. Please close the anti-virus software and disconnect the internet when you install the software.
4. This new version only can be installed on WIN7 system.Can not work with XP,WIN8,WIN10.
5. There are two ways to select language.One is automatically identified by system, if your system language is English,then your ODIS software language is also EnglishThe other way is you select language when you install the software,but it must be the same in these two places.

VAS 5054A Description :
V5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.The integrated Bluetooth interface connects the vehicle with a notebook,desktop PC or test system.No cables are needed for vehicle diagnostics using the VAS 5054A.

Supported Systems:
K Line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO11898-3)
J1850 (SAE J1850)

System Requirements: XP Windows System
Language: American English Windows 7 32bit or 64bit ONLY,
no anti-virus software
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS 5054A

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC.

The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.

The diagnostic application and the associated Diagnostic Base System are installed on the application PC.The diagnostic base system can access the VAS 5054A via Bluetooth or USB.

Access via Bluetooth:
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.The Serial Port Profile (SPP) is used for data transfer via Bluetooth.Different Bluetooth security levels are supported.

After a connection to the VAS 5054A has been set up,the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.

Access via USB:
You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

Q: 5054a doesn’t support diagnosing the cars after 2007, right?
A: No, that’s not true. VAS5054a support diagnosing the cars up to 2013, we used to test successfully some models of 2011 and 2012 year. As for your car model after 2007 is not supported, you can try to diagnose some more models after 2007 to ensure whether 5054A supports your car or not.

Q: Which tool is best to reset the airbag for VW Golf Plus 1.6 FSI 85 KW 2005?
A: 5054A is the best and reliable.

Q: Does 5054A reset the ABS light and SRS (Airbag) light for VW AUDI Skoda SEAT?
A: Yes, It does.

Q: VAS 5054A work with Skoda Octavia 2004?
A: Yes, it does.

Q: Can VAS 5054A disable immobilizer like EC tools?
A: No, it can’t disable immobilizer; our 5054A only support reset every electronic control system in the car.

Q:Can this car do my seat 2005?I need a tool can do most audi,vw and seat car.
A:dear friend,VAS 5054A can do most vag car from 1996-2014.

Q:Does 5054a has bluetooth?
A:yes,it has,can be used in 5M.

Q:What's your bluetooth password?

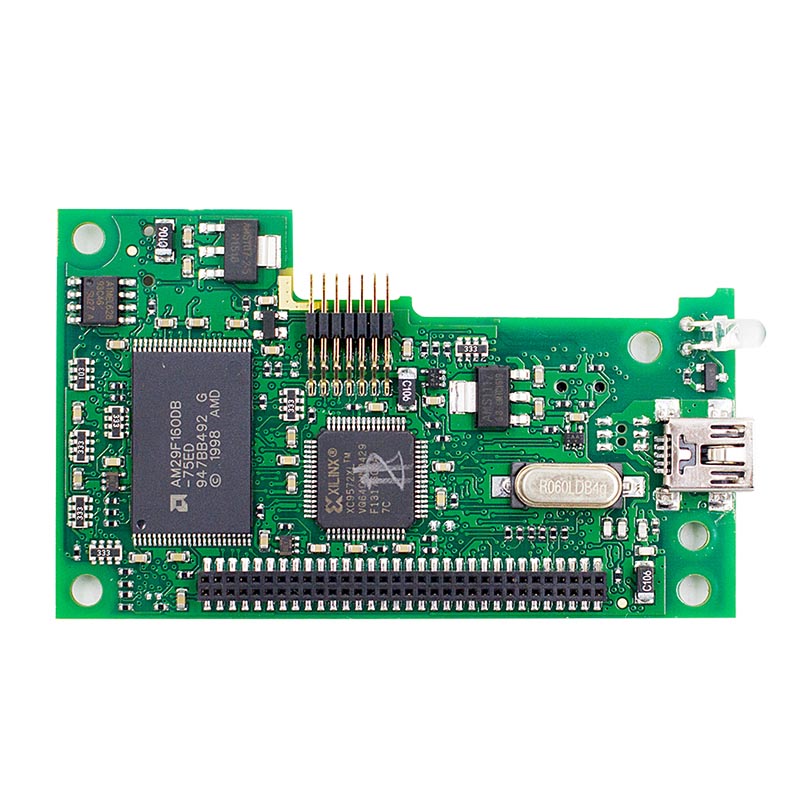

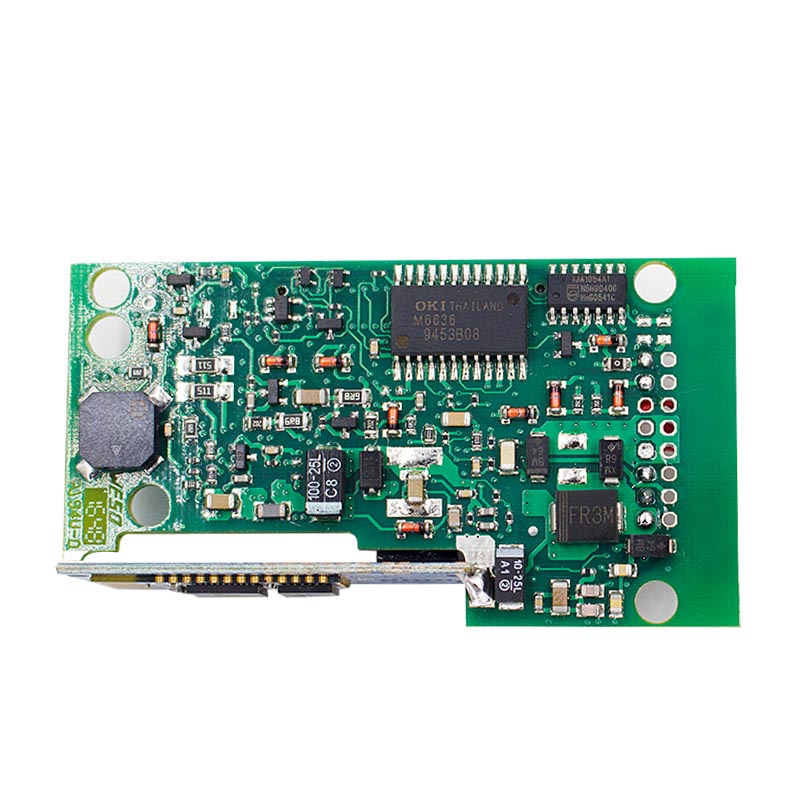

VAS 5054A Bluetooth Diagnostic Tool PCB Show:

vas 5054a diagnostic tool.jpg

vas5054 vas 5054a odis v2.2.4 bluetooth.jpg

Package List:

1pc x VAS 5054A main unit
1pc x USB cable
1pc x Bluetooth
1pc x CD
1pc x Black Plastic Carry Box
