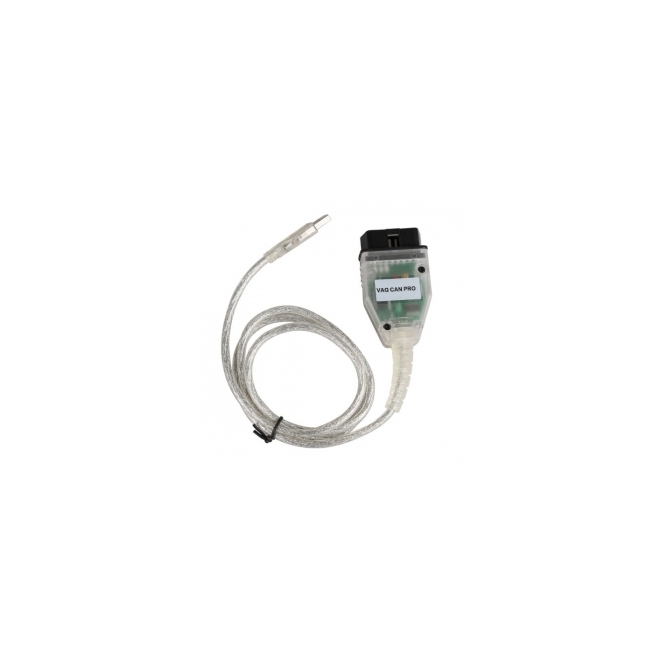

VAG PRO CAN BUS+UDS+K-line 5.5.1 Without USB Dongle

XTYW121B

0.5Kg
Free Shipping

$15.00

15 reward points

Shipping Agent




Qty: Unit(s)
Related Download Files:



VAG PRO CAN BUS+UDS+K-line S.W Version 5.5.1 Without Usb Dongle

Language: English, Czech, Danish, German, Croatian , Italian, Dutch, Polish, Russian, Spanish

New in Version 5.5.1:

Support for new addresses entered in the MLB-Evo platform
Update database-ODX (support for all models 2015)

Main Features :

-Unique features OCLF service procedures (One-Click-Function);
-inexpensive flasher for VAG;
-inexpensive flasher with support UDS controllers;
-ESP MK60EC1 decision coding blocks;
-a tool for a complete diagnosis MQB platform (Golf VII, Octavia III) Support to 01.2013;
-ZDC-loading containers in the electronic components;
-Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);
-Coding controllers for PR-codes;
-"Login finder" - allows you to scan and logins in the CAN controllers UDS;
-Support for the new Polo in 2014 Facelift;
-Support for the new Passat B8;
-Full support of Audi TT-3 on the platform of the IBC;
-Full support for Skoda Fabia III

Major Changes in the PR encoder:

-Now it is possible to keep PR-codes of a file
-PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU
- You can compare the data stored in the ECU against the calculated data, choose what you want to download.
-OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved.
-The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.
-Enhanced TXT-coding, coding calculation is now faster APDUs.
-Updated data base DTC- Fixed problems with parameterization 7N0 cameras
-Fixed problems with parameterization 5M0 ...... F AFS modules
-OCF new section called "Apps", which is: Download the parameter data, coding for PR-
code, programmer Wabco, BCM, and so forth programmer..
-The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (*
.SGO, * .FRF, * .ODX) in a binary dump.

Note: The source data format is not changed,so that if a Flash file kriptovat and compressed, the binary file will be the same.

- Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway.
-Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)
-New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform
-Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform
-OCF Disable Start-Stop system is now supported PQ26 platform (Polo 6C, Fabia III, etc.)
-Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG.

Supported Cars:

1. Audi

A2 2009-
A3 8P 2003-
A3 - platform MQB-
A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-
A4 model 8K wariant B8 (UDS + TP2.0) 2008-
A5 model 8K (UDS) 2007-
A6 model 4F 2004-
A8 model 4E 2003-
Q3 (UDS) 2010-
Q5 (UDS) 2008-
Q7 (TP2.0 + UDS) 2006-
S5 model 8K
(R)S6 model 4F
R8 (UDS)
TT model 8J 2007-

2. Mercedes

Sprinter (VW Crafter) - - Only the engine and immobilizer

3. Seat

Altea
Leon MQB 2013-
Leon model 1P 2005-
Toledo model 5P 2004-
Exeo 2008- (Engine, transmission, airbags, ABS, park)

4. Skoda

octavia model 1Z 2004 -
octavia platform MQB -
superb II B6 2008-
fabia model 5J 2007-
yeti 2009-

5. Volkswagen

Crafter (immobilizer, engine)
Caddy model 2K 2005-
Eos
Golf V model 1K
Golf VI model 5K
Golf VII platform MQB
Golf Plus
Jetta II model 1K
Transporter / Multivan (Only after the CAN-BUS drive for storing data)
Multivan/Transporter GP model 7E (UDS) 2009-
Passat B6 model 3C 2005-
Passat CC-
Phaeton GP 2007-
Polo model 6R 2009-
Polo FL MQB 2014-
Scirocco III-
Touran-
Tiguan-
Touareg GP 2007-
Touareg NF 2010

K-line ( KWP1281, TP/KWP2000)

- VW Golf III, IV
- VW Passat 3B
- VW Bora
- VW Transporter T5
- VW New Beetle
- VW Polo II,III,IV
- Skoda Octavia I
- Skoda Fabia i i II
- Seat Leon I
- Seat Toledo II
- Seat Alhambra
- Seat Ibiza II, III, IV
- Audi A2,A3,A4,A6 K-Line

Notes for Audi A4:

1. Option A4 8E B6 model

This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.

2 .Model A4 8E, B7 option

This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.

In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

Package including:

1pc x VAG PRO
1pc x CD

24hour Online Customer Service:

E-mail:Autocardiag@gmail.com
Skype:AutoDiag
Whatsapp:86-13667154167

Read the Review
Date Added: 05/13/2017 by Campbell Lincoln
4 of 5 Stars!4 of 5 Stars!
Received quickly enough, not yet Tested for the type of the entire whole, thanks.





Customer Videos: See all 0 videos

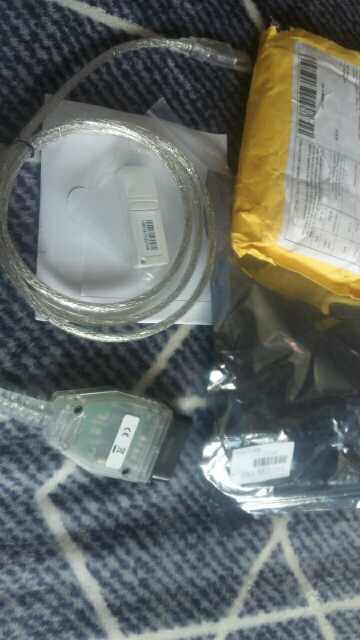

Customer Images: See all 1 images
Friday 12 May, 2017

This product was added to our catalog on Friday 12 May, 2017.
