UCDS Pro+ For Ford UCDS V1.26.008 Full License Better Than VCM II


Free Shipping


49 reward points

Shipping Agent

Qty: Unit(s)
Related Download Files:

UCDS Pro+ For Ford UCDS V1.26.008 Full License

Ford UCDS Introduction:
Model name:UCDS PRO +
Software Version:V1.26.008
Update:By link
Car Models:For Ford till 2015
Functions:Diagnostic+Odometer correction+online/offline programming
Connection:By OBD2.
Computer requirements:XP Or Win7

Install/User Note:
1 With 35 tokens: token only need for mileage programming & ECU chip tuning function (When use up tokens,give ID to us, 35usd for 35 tokens.)
2 Ford UCDS full license adapter: full mode activated, access to existing sections of the software, such as: VBF Loader, Update Wizard and Direct Config.
3 UCDS supports the reconfiguration of the car, the engine firmware stock firmware.

What Functions of Ford UCDS need use tokens?

35 Token Credits – mainly serve to clear runs, increase engine power by programming staff at higher power (eg Ford Focus 3 150HP -> 163HP), Russification recorder Sony 2nd Generation (pink lights plastic central volume control), programming Car Ford Focus 2 2008gv continue to function when closing Autofold mirrors arming, as well as various additional operations.

Ford UCDS V1.26.008 Descriptions:

Ford UCDS is the 2017 New Released Diagnostic Adapter with newest software V1.26.008 can replace Ford VCM II perfectly, just one difference, UCDS Ford cannot key programming, but UCDS (Universal CAN Diagnostic System) for Ford can support Mileage Correction and it is full function type has 35 tokens also support special functions like VBF LOADER, UPDATE WIZARD, DIRECT CONFIG.

UCDS Ford Diagnostic adapter, Ford UCDSYS with Ford UCDS V1.26.008 full function type software support special functions VBF LOADER, UPDATE WIZARD, DIRECT CONFIG.

VBF Loader - section UCDS design software, allowing yourself to load the modules in the Ford brand vehicles, the various files in the format .VBF

Update Wizard - section UCDS design software that allows to update the software of different brands of Ford cars modules in accordance with the latest IDS software databases, subject to the availability of files on the servers. Attention! Not all modules can be updated via the data section, because update files or not laid out in the server (security policy) or module is an alternative way to update their own software (eg via USB or SD card).

Direct Config - section UCDS design software that allows for the configuration of the various modules of Ford directly. A distinctive feature of car Ford Mondeo 5.

For information - Car Ford Mondeo 5 can only be configured via this section.

UCDS Ford compare with Ford VCM II:


UCDS Universal CAN Diagnostic System 1.26.008 has the same data as the ids v102.

Both UCDS and VCMII can support online and offline programming.


1. UCDS support special functions like: VBF LOADER, UPDATE WIZARD, DIRECT CONFIG
2. UCDS support more vehicles than vcmii
3. UCDS support odometer correction, while VCMII can't
4. UCDS support the reconfiguration of the car, the engine firmware stock firmware, chip tuning, vcmii can't.
5. VCMII support key programming, while UCDS can't

UCDS Ford Supported Vehicles:

-Focus MK2 (2004-2014) C307
-New Focus MK3 (2012-2017) C346
-New Mondeo 13 (Mondeo5)
-eco sport
-And other new models

UCDS Software Features, allows the user to:

1. Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
2. Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
3. Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
4. Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
5. Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
6. Upgrade (replacement) of the door modules software to activate the automatic folding door mirrors.
7. Other

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual  UCDS-programm.

The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.

UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..

UCDS Ford V1.26.008 Functions:

1. Read the fault code
2. Clear trouble codes
3. Read the data stream
4. Data recording
5. Module reset
6. Module Installation
7. Re-program the ECU TCM BCM and so on
8. Clear the airbag (RCM) collision data
9. Read, backup, edit, and erase "AsBuilt" files
10.Read, backup, edit, and erase the underlying "DirectConfig" configuration file
11.Support ECU chip tuning, eg: Ford Focus 3 150HP -> 163HP, Ford Mondeo 2.0T 200HP -> 240HP, Focus 2012 Year 85HP -> 105HP, 150HP -> 163HP
12.Can directly re-flash VBF file
13.Can directly re-flash BIN file
14.Can online update entire vehicle modules (Update Wizard)
15.Can program mileage on Focus MK2, 2012 Focus MK3, Mondeo, S-Max and other models

UCDS Ford Detailed Features For FOCUS2 KUGA:
Support models: FOCUS2 KUGA after 2004 year.

Support functions: Scan and clear the fault code, read and modify the parameters of the following modules, PCM refresh KAM reset, IPC refresh and clear, RCM reconfiguration. ST power refresh

Support Modules: ABS, DCCU, EATC, HEC, PAM, GEM, VRM, ACM, RCM

Common Functions: Automatic lock, cruise control, refresh PCM, KAM reset, tire modification settings, seat belt alarm settings, RCM crash datreset, light locks personalized settings, instrument economic mode, instrument average fuel consumption, ultrasonic anti-theft monitoring

Ford UCDSYS Application on Focus 3:

Support for models: Focus 3

Support functions: scan and clear the fault code, As-built file to modify the instrument to update and clear the refresh, PCM refresh and power upgrade (200P brush 240P, etc.), TCM upgrade refresh SONY CD head upgrade, ABS upgrade, RCM programming and reset, direct configuration IPC BCMII APIM.


Common Functions: DDS tire pressure monitoring, cruise control, automatic headlights, automatic wipers, blind spot monitoring, automatic lock, tire modification, audio system upgrade, PCM programming, TCM programming A, ABS programming, instrument clear, mileage write

UCDS Ford Application on S-MAX:

Support models: Ford Mondeo, S-MAX and Ford Transit

Support functions: Scan and clear the trouble code (all modules), As-built file to modify the instrument upgrade and refresh, PCM refresh and power upgrade (200P brush 240P, etc.), SONY CD head upgrade

Support Modules: BCMII, PCM, IPC

Common Functions: Modify the automatic lock, auto headlamps, xenon headlamps mode, cruise control, navigation activation, speeding alarm, tire modification, body configuration parameter changes, instrument upgrades, engine power upgrade.

UCDS Ford Application on KUGA:

Support models: KUGA

Support functions: Scan and clear the fault code, As-built file to modify the instrument to update and refresh, PCM refresh and power upgrade (200P brush 240P, etc.), TCM upgrade refresh, SONY CD head upgrade ,, ABS module programming, RCM programming And reset, direct configuration IPC BCMII APIM, CAN-BUS monitoring log.

Support Modules: BCM II, PCM, TCM, IPC, ABS, RCM

Common Functions: DDS tire pressure monitoring, folding reversing mirror, cruise control, automatic headlights, automatic wipers, tire modification, navigation activation, ABS module installation, RCM crash datremoval, instrumentation mileage reset.

UCDS 1.26.008 Update Information:

1. Support the new version UCDS V3.
2. Database Synchronization IDS 102.00.
3. Focus Classic TCM programming: can use the BIN file for 1.6 / 2.0 TCM
4. Focus Classic PCM Programming: save and load VID information suitable for all PCM.
5. Focus Classic PCM programming by using binary BIN file...ok
6. Focus Classic PCM programming fixes the errors of 1.8 / 2.0 / 2.0 ST data.
7. Mondeo S-MAX programming by the binary file 1.6 / 2.0 / 2.3 / 2.0 Diesel PCM firmware data ok.
8. Mondeo S-MAX clear BCM II crash data…ok
9. New Focus calibrates 1.6 / 2.0 dual-clutch transmission.
10.Adds the latest dual-clutch calibration programming file for New Focus
11.Carnival clear RCM crash data…ok
12.Carnival calibrate wiper…ok
13."UPDATE WIZARD" fixes the error after a part of modules refresh.
14.MONDEO GHIA-X S-MAX 2.0T DPS450 dual-clutch calibration.
15."DIRECT CONFIG" supports Visteon ACM.
16."DATA LOGGER” repairs some functions.
17."DIRECT CONFIG" adds SYNC2 option.
19.C391 New Mondeo RCM crash data clear.
20.C391 New Mondeo RCM module initialization function.
21."ASBUILT EDITOR" modifies part of errors.
22."DIRECT CONFIG" adds C391 new Mondeo 2.0 engine.
23.NEW Focus and KUGA adds ABS bleeding function.
24.C391 New Mondeo 2.0T Chinese adds the PCM calibration file.
25.MOTORSOFT adds:
   New KUGA adds EV4A-14C204-BB
   New Mondeo adds FS7A-14C204-ECA
   V5 engines 2.5-5 KUGA and Mondeo
26. Optimize most applications.
27. Complete revision of the J2534-2 database for UCDS V1 / V2 / V3.

UCDS 1.26.008 Software Display:

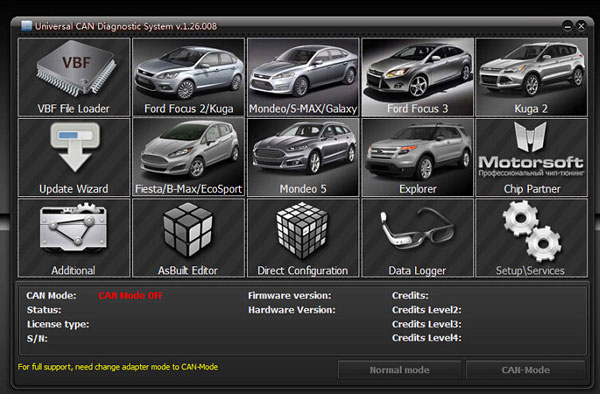

UCDS Software Status before Connecting UCDS Cable

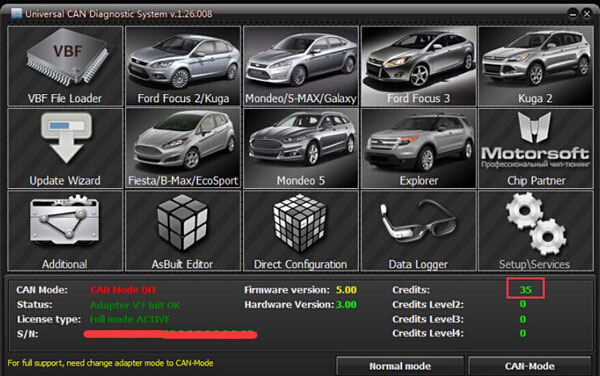

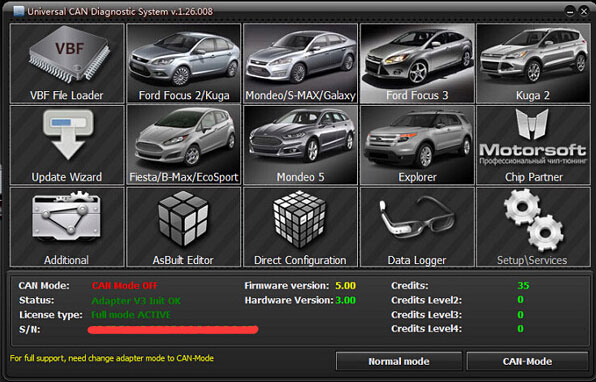

UCDS Software Status after connected to UCDS Cable

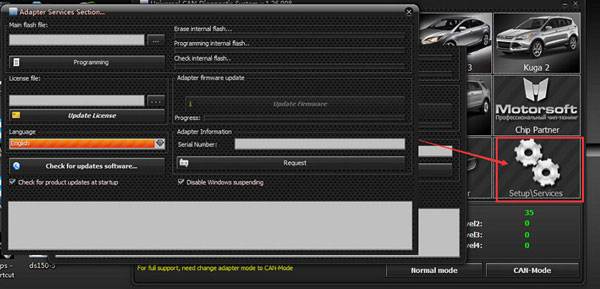

UCDS Adapter Services Section

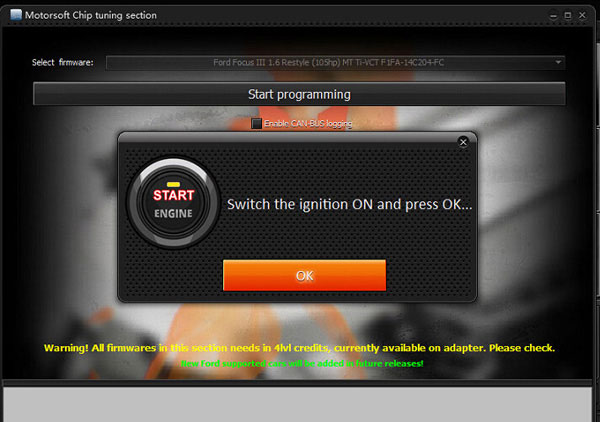

UCDS Motorsoft Chip Tuning Section


UCDS Direct Configuration


UCDS Additional Function


UCDS Update Wizard


UCDS Basic Functions for cars Ford Focus III

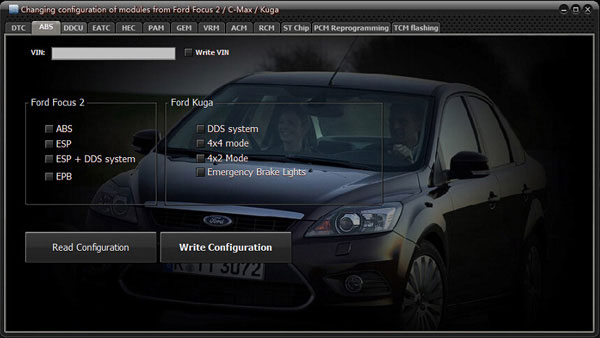

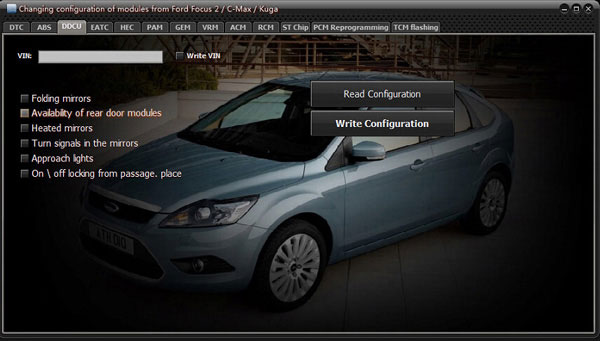

UCDS Changing configuration of module’s from Ford Focus 2/C-Max/Kuga



Package List:

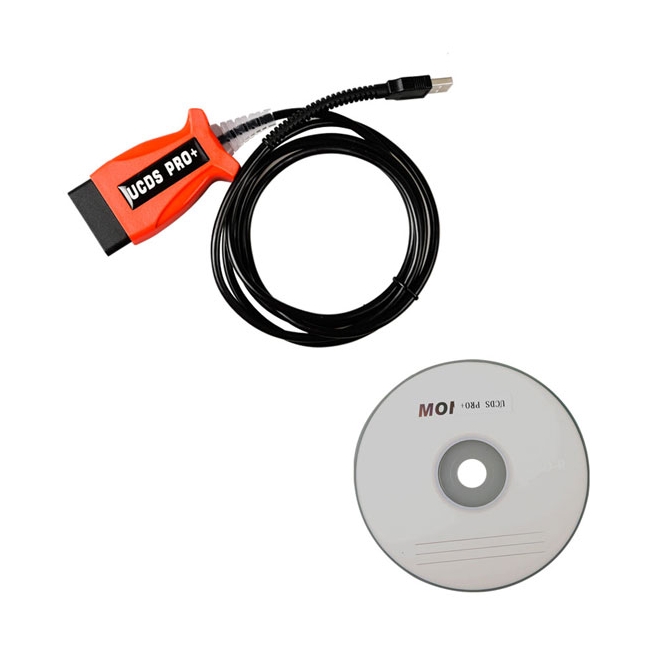

1pc x UCDS – Ford
