TPMS Tire Pressure Monitor Work For Bluetooth 4.0 Mobile Phone

1.TPMS Sensors works through bluetooth 4.0 to mobile phone. Bluetooth Low Energy Consumption. Fast and accurate.

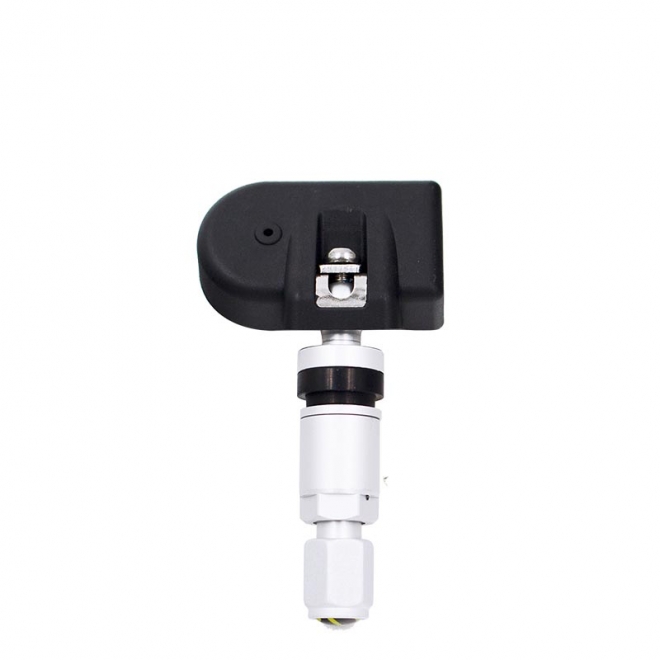

2.There are 4 internal sensors will be installed, Anti-theft and waterproof (IP67).
3.Internal sensors can works 5 to 8 years(40KM per day)
4.It has KPA, BAR and PSI switch function.
5.It has C and F temperature switch function.

It was designed as a direct tire pressure monitoring system, namely, installing pressure and temperature sensor on the tire, then displaying the real-time data on phone (Android ,IOS) through Bluetooth connection, And it will alarm when the tire pressure and temperature is abnormal.
You just need to install 4 TPMS sensors on Tires and  they will send the temperature and pressure signal to mobile phone through bluetooth. You can view realtime temperature and pressure through the APP you installed on Andriod and IOS device. APP will alarm when temperature and pressure of tires are abnormal.

Working voltage: 3V
Working current: 100μA
Sleeping current: Less than 2.2μA
Bluetooth working frequency:2.4GHz
Response time: Less than 5S
Tire pressure detection range: 100-1300 kPa (1-13 Bar)
Tire pressure detection accuracy: ± 10kPa (0.1

Battery life : 3-5 years ( external sensor), 40km per day
or 5-8 years ( internal sensors), 40km per day.
Package List:
4pcs x Sensors
1pcs x Card With App QR Code
1pcs x Packing Box
