Ship From Europe Red KESS 5.017 EUR Version +KTAG 7.020 +Led Bdm Frame Support Online No Tokens Limited

XTY2017055

3Kg
Free Shipping

$219.00  $199.00 Save: 9% off

199 reward points

Shipping Agent




Qty: Unit(s)
Related Download Files:



Wholesale Price For RED KESS FW5.017 EU Version +KTAG 7.020 +LED BDM Frame Support Online No Tokens Limited

Note : Pls Install KESS 5.017 and Ktag 7.020 in two separated computers,not in one PC to avoide operations errors.

Master Online KESS 5.017 EU Version Instructions :

Model name:Kess V2 Master
Software Version: V2.23 (Newest)
Fireware Version: V5.017
Update:By link
Car Models:For Multi-cars and trucks,no year limited
Languages:English/ German/ Spanish/ Italian/ Portuguese/ French
Functions:Ecu Programming Tool
Connection:By OBD2.Read and write ECU via OBD2 port directly, no need disassemble ECU from the car, easy to use .
Support Protocol:OBD2,BOOT...

Customers Should Know Things about Our KESS V2 5.017 Master Version

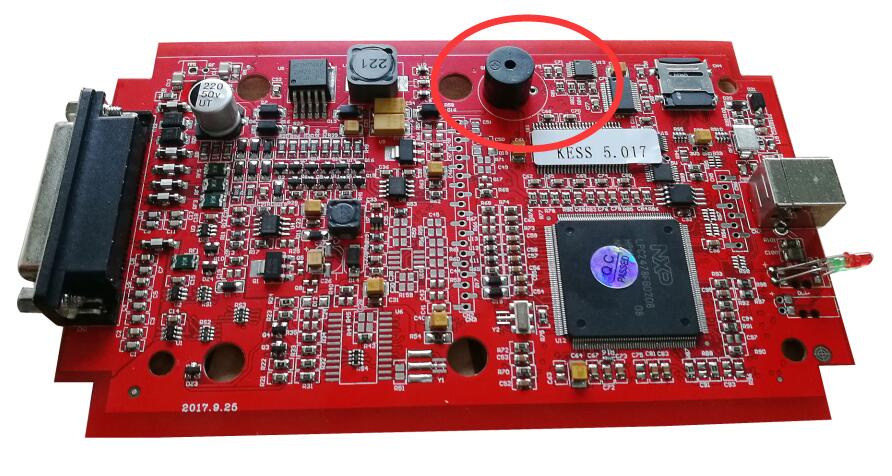

1.) This is the 2nd generation of Red PCB KESS FW5.017,added buzzer,see the full components below

new red pcb kess v2 5.017.png

Autocardiag.com Red PCB Kess v2 5.017 with full components :

More one buzzer
WFs = Infineon, BCR112 NPN Digital Transistor
27E = ON Semiconductor NUP2105LT1G
6DW = NXP BC817,215 NPN Bipolar Transistor
A6c = MMUN2113LT1G / MMUN2113LT3G
K5B = BC807-25-7-F PNP Bipolar Transistor
NFE61PT472C1H9L Murata

2.)KESS V2 5.017 With Red PCB Europe Version Highlights

1.The Best PCB Board(Red EU Version), LPC2478 NXP Chip + Newer sd card + 3D Sticker.
2.Using imported Japanese Murata filter NFE61PT472C1H9L
3. Better performance,function as well as online 140+protocols supported.
4. Online Operation Supported,No tokens limited.
5. Perfect for OBD use,Read and write ECU via OBD2 port directly, no need disassemble ECU from the car, easy to use .
6. No reset button,no USB dongle,no tokens limited and has tested by many users as well as our technology department, 100% workable.
7.Multi-Languages supported.

K-TAG KTAG 7.020 Master Specification

Model name : KTAG Master
Software Version: V2.23 (Newest)
Fireware Version: V7.020
Update:By link
Car Models:For trucks,trackors,boats,heavy duty,no year limited
Languages:English/ German/ Spanish/ Italian/ Portuguese/ French
Functions:Ecu Programming Tool
Connection:By OBD2.Read and write ECU via OBD2 port directly, no need disassemble ECU from the car, easy to use .
Support Protocol:OBD2,BOOT...

Customers Should Know Things about Our KTAG 7.020 Master

1.)What's main different between Our K-TAG KTAG 7.020 and others?

1.Mainly Different :  Our K-TAG 7.020 add a GPT cable to support GPT Functions ( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )

2.No reset button ,no USB Dongle. NO Tokens Limited!!!

3.REAL VERSION OF KTAG 7020 EURO ALL ACTIVATED VERSION!!!

2.)What is the advantage of KTAG V7.020 over than other EUC Chip Tuning Tools in the market?

1.Supports online full protocols ,fully activated,without tokens limited.
2.There are lot ECU that need to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM and Boot protocols, so KTAG is needed,as the new generation ktag master,ktag 7.020 is the best choice.
3.K-TAG 7.020 can work For Toyota Hilux kun26 and new added 100+ ECU types & supports new car models e.g. Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276 ECU, Toyota 76F, etc.
4.KTAG V7.020 add a cable with GPT Functions.
5.Online operation supported.
6.Best PCB With Murata filters.
7. Multi-Languages Supported .
8. With a great performance and tested by many tuners and was regarded as one of the best ECU Programmer for trucks ,heavy duty,boat.
9.No tokens limited, no years limited.
10.No USB Dongle,No reset button.

BDM Frame With 4 Probes Mesh And LED Description:

NEW LED BDM Frame is newest upgrade ECU Programming adapter .
More Function than old BDM Frame.
It is best used for KTAG,KESS,KTM100,FGTECH/BDM100/CMD/DIMSPORT ect... ECU Chip Tuning Tools.
Easy installation and operation,no hurt the ECU circuit board.

Function:

For Car rush,modify,programming bracket stand.
Fits for ECU brush&write,ecu modified&programming.
Probe holder,dimsport assistant.

Material:

Aluminum alloy stand
Arcylic board,mesh assistant

Please pay attention :

DOES NOT contact PCB in the pacakge
LED must works up to 12V.Connect with probe,then disconnect 12V power for LED,it will light and works.
Probe pen can adjustable

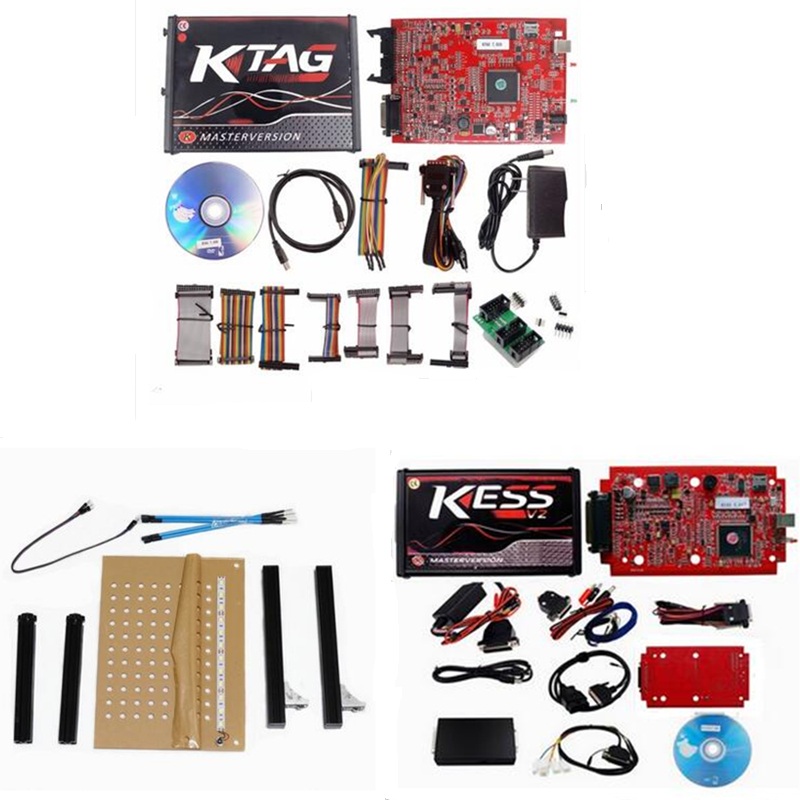

Online EU Red PCB KESS 5.017 KTAG 7.020 + LED BDM Frame With 4 Probe Pens Full Set

online eu red kess 5.017 master.jpg

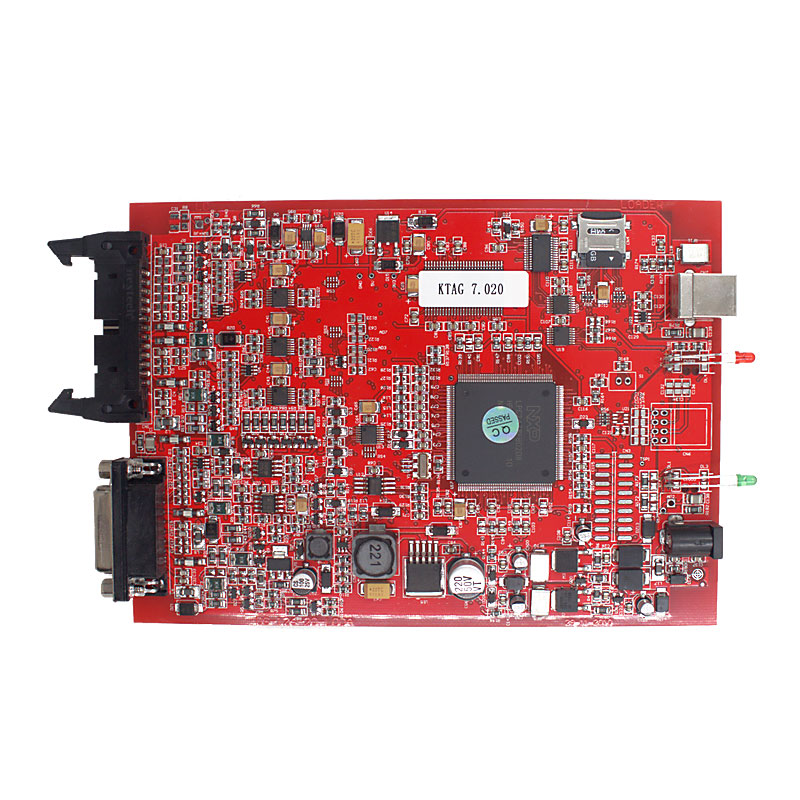

Master Online KTAG 7.020 ECU Programmer PCB Pictures


KESS FW5.017 Ksuite 2.23 PCB Preview

red pcb kess 5.017(2).jpg


LED BDM Frame With 4 Probes

bdm frame.jpg
