Newest Xprog 5.72 XPROG-M EURO Version Without USB Dongle ECU Programmer

XTY60841

0.8Kg
Free Shipping

$129.00

129 reward points

Shipping Agent




Qty: Unit(s)
Related Download Files:



Newest Xprog 5.72 XPROG-M EURO Version Without USB Dongle No Need Keygen ECU Programmer

XPROG 5.72 Introduction

Model name:Xprog M 5.72
Software Version:V5.72 ,FW :3.9
Update:No update now
Car Models:For Multi-cars,no year limited.
Languages:English
Functions:Ecu Programmer
Connection:By Chips board connection.

How to install Xprog V5.72 ECU Programmer on Window 7


2017 NEWEST XPROG-M 5.72 Description

Newest XPROG 5.72 is the latest introducted ECU Programmer for univeral car models. v5.72 XPROG ECU Programmer was based on Xprog V5.7,but more powerful. The Xprog 5.72 X-PROG M was the real europe version,added new authorization : AUTH-0025 Authorized 13/3/2016 and no tokens limited,no usb dongle comes with and in all, Xprog 5.72 X-PROG M 5.72 will be ideal ECU Programmer Tools for tuners.

Xprog 5.72 X-PROG M EURO Version Highlights

EURO VERSION!!NOT CLONE FROM CHINA CLONE!!!
Our X-prog 5.7.2 tested and 100% working!
No USB Dongle,No need activate or keygen!

Directly use and can be connect with internet!!!

Xprog-M 5.72 Updated Version of Xprog V5.7 Notice Tips

High request to your pc:
A Quad-core processor
B ONLY works with WIN7 64 bits
2 Cannot update via internet,we will send you software update link in future free.
3 Must be installed on the virtual machine

XPROG 5.72 BOX ECU Programmer Authorizations :

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 11/4/2014

XPROG-M V5.72 XPROG 5.72 ECU Programmer Full Set Software Preview

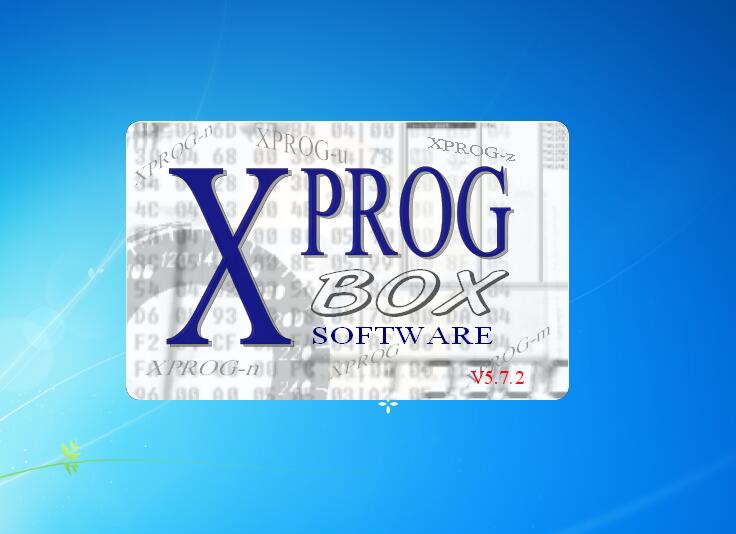

xpro v5.72_01.jpg

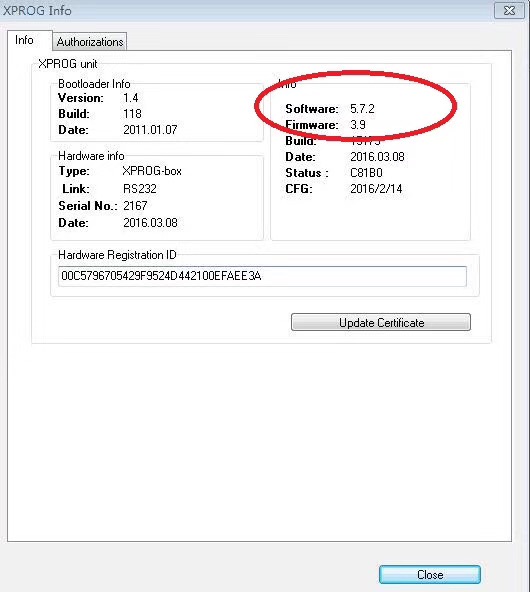

xprog 5.72 software.jpg

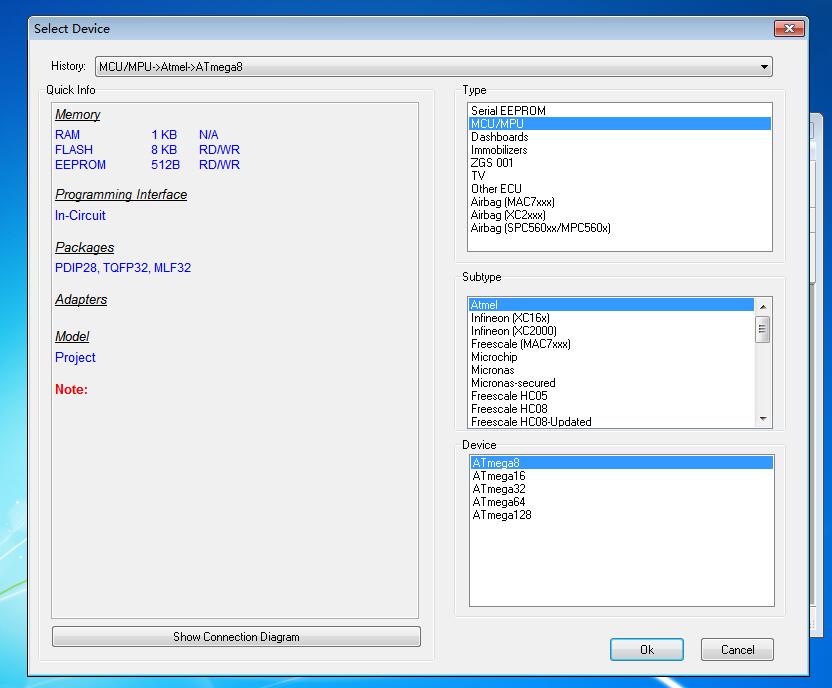

xpro v5.72_03.jpg

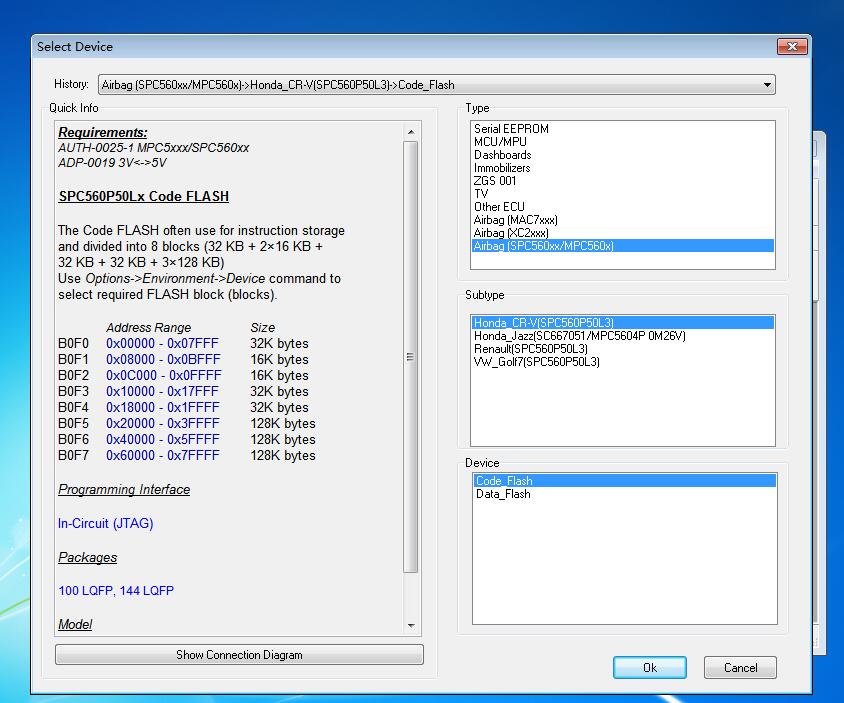

xpro v5.72_04.jpg



XPROG-M 5.72 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash

XPROG-M 5.72 BOX ECU Programmer Package Includes

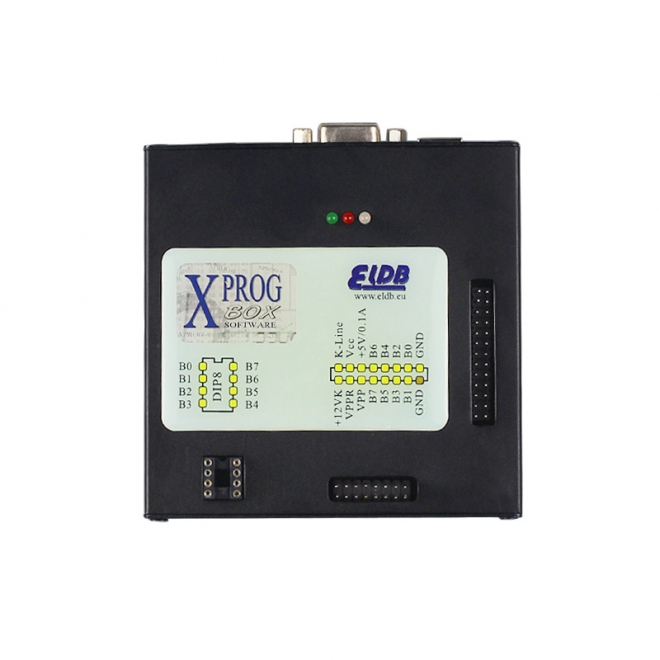

1pc x  XPROG-Box Hardware (Aluminum Enclosure) .
20pcx  Adapters Set
1pc x  USB Cable.
1pc x  CD with XPROG-Box Software (V5.72)
