Newest SVCI J2534 Diagnostic Tool for Ford & Mazda IDS V113 Support Online Module Programming


Free Shipping


135 reward points
Qty: Unit(s)
Related Download Files:


FVDI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software.And it can be used as a ELM327 device also,support most of ELM327 software.

FVDI J2534 Advantages:

1. High speed host communication.(3 Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. Online software update and keep software latest always.
5. Online fireware update.
6. USB 802.11 selectable host communication.
7. Support ELM327 software by one device.
FVDI J2534 Support Softwares:

J2534 For IDS V110
For IDS V110
For To TIS V13.00
For Lr/Jr SDD2 V153
For Nis Ct II Plus R2R V80.11
FVDI J2534 Support ELM327 Softwares:

FVDI J2534 Appearance Details:

Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly
PS Push Switch:
Pressed: works as ELM327 mode Released: works as J2534 mode
FVDI J2534 Comparison Table with other Devices
FVDI J2534 VS.for Ford/Mazda IDS:

FVDI J2534 VS. for Toyota TIS:

FVDI J2534 Support Protocols:

ISO9141 IS014230
J1850 VPW
J1850 PWM
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
FVDI J2534 Specifications:

L*W*H:                                  76mm*54mm*22mm
Environmental:                      -20℃-45℃(-4℉-113℉) at 15% to 85%
Voltage Requirements:         8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing
Vehicle Connection:              Molded DLC3(OBDII-16)

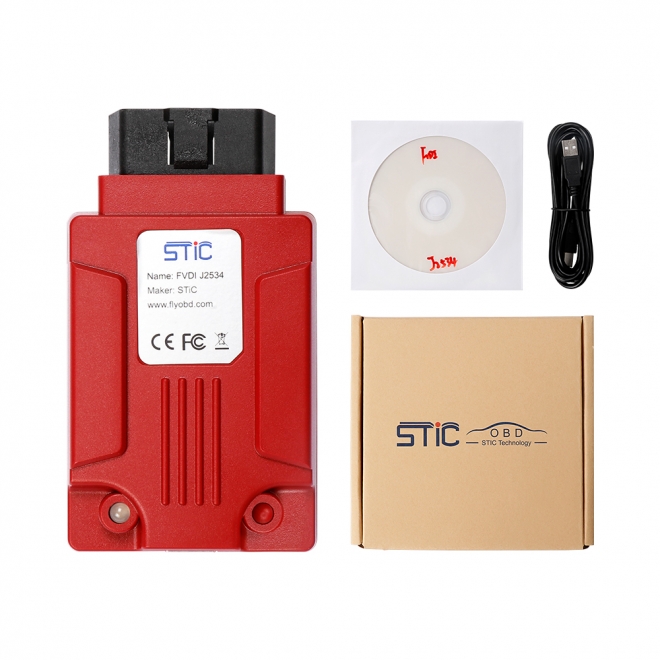

Package list:

1set x FVDI J2534
