MVD MVDiag CDP USB Version OBD2 Diagnostic Tool

XTY14361

1Kg
Free Shipping

$39.00

39 reward points

Shipping Agent




Qty: Unit(s)
Related Download Files:
TCS-CDP-MVDiag-software-support-vehicle.rar  (1748.2K)



TCS CDP MVD MVDiag USB Version For Multi-Cars Diagnostic Tool

Newest  OBD2 Diagnostic Tool Italy Version with Italy Languages Available Now.

TCS CDP MVD MVDiag Bluetooth Version Click it here : MVDiag Multi Vehicle Diag MVDiag Bluetooth



V5.00.12 MVD MVDiag Multi Vehicle Diag

Model name:MVD TCS CDP USB Version
WOW 5.00.8 Software Version:V5.00.12 EN
Update:By link
Car Models:For multi-cars and trucks
Languages:English,Czech, Dutch, French, German, Greece, Hungarian, Italian, Polish, Russian, Spanish, Serbien, Turkish, Portuguese
Functions:Diagnostic interface
Connection:By OBD2
Computer requirements: XP or WIN7



MVDiag Description

MVDiag Multi Vehicle Diag is a quick and reliable diagnostic tool for serving as a link between vehicle and computer. It works on both old and new cars & Trucks & Generics . MVDiag Multi Vehicle Diag is a multi function tool supports multi languages and supported universal cars and easy to use with 100% working.



MVD MVDIAG Diagnostic Tool Highlights

1.Top quality and cheap affordable price.
2.works on both old and new cars & Trucks & Generics.
3.Multi-Languages Supported.
4. Stable and fast bluetooth connection.
5. Easy to use.
6.Tested by many users,many good feedback reviews received.



MVD MVDiag Multi Vehicle Diag Install/User Note

1 Our CD is with 5.00.8 Version and can only support car.If you want to do trucks,you can install DS150 software for it.
2.Before Connect device and computer, remember to add the serial number 100251 in serial_number.txt !  Otherwire it will not connect successfully !
3.It supports multi-languages.
4. right now is only for Italia and English Version.When it install the new version,last step,you need update the WOW firmware to 2015.01.We send 5.00.12 it by link to you.If you want other language,please use 5.00.8 version.



New MVDiag Review

MVDiag Multi Vehicle Diag

MVDiag Multi Vehicle Diag wow 5.00.12New MVDiag Multi Vehicle Diag wow 5.00.12



New MVDiag Multi Vehicle Diag With Bluetooth WOW 5.00.12



MVD MVDiag CDP WOW 5.00.12 Bluetooth Version OBD2 Diagnostic Tool

MVDiag Multi Vehicle Diag can do the following:

-Manufacture specific serial diagnose
-Scan function
-EOBD/OBDII communication
-Serial Systems
-Engine
-Ignition
-Climate
-ABS
-Service reset
-SRS
-Immobilizer
-Instrument
-Comfort system
-Gear-box

MVD CDP PRO Vehicle Coverage:

For CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards,47 different brands.

For TRUCKS, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards,37 different brands.

For GENERIC, The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.

Wide Year coverage, up To Newest 2016 Car Models, Below Car Models as a example :

TCS CDP MVD MVDiag Compatible Protocols:

2xHS CAN (ISO 11898-2),
SW CAN (SAE J2411),
K/L (ISO 9141-2),
VPW (J1850),
PWM (J1850),
RS485 (J1708),
TTL and (SPI, analog in, 5volt out)
ISO 15765-4 ( CAN 11-500 ) Protocol As Example:

MVD DIAG Functions:

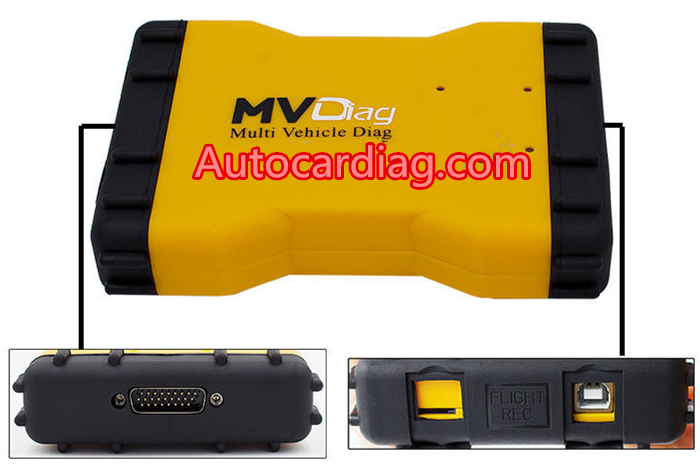

FLIGHT RECORDER

With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

MULTI-COLORS INDICATOR

With the multi-colors indicator on TCS, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the TCS is in communication with the vehicle control unit.

CONNECTOR WITH LED

To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.

VOLTAGE CHECK

When TCS is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, It will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

REPORT FUNCTION

Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

OBD-FUNCTIONS

TCS is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

UNIVERSAL

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform

HELP FUNCTION

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.

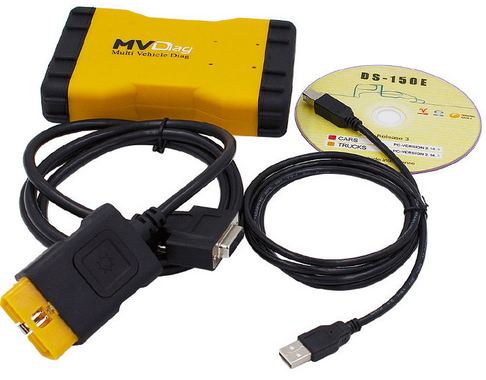

MVD MVDiag CDP OBD2 Diagnostic Tool Packing List:

1 X MVDiag
1 X CD [With Installation Vedio)
1 X USB cable
1 X Carton Box
