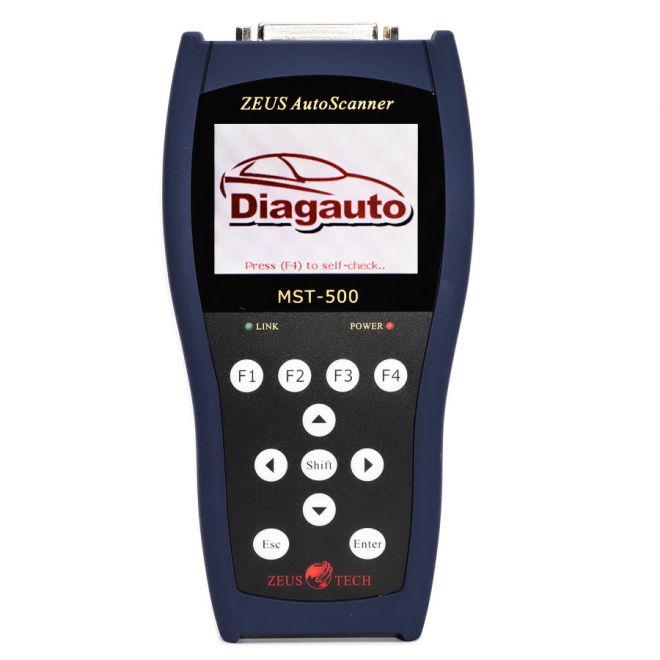

MST500 MST-500 Hand-held Motorcycle Scanner Tool

XTYX334

3.2Kg

$169.00

169 reward points
Qty: Unit(s)
Related Download Files:
master-mst-500-motorcycle-list.pdf  (1260K)



MST500 MST-500 Hand-held Motorcycle Scanner Tool

MST-500 Description:

1, Hand-held operation, convenient and flexible to use
2, Support for SD cards to store data and upgrades, more convenient and easier
3, Reserved CAN bus interface
4, 3.2-inch color screen, clear display.

Functions:

1. Read the information system
2. Read the data stream
3. Read fault codes
4. Clear fault codes
5. Freeze data
6. CO Idle speed adjustment

MST500 Features:

Power: DC10-15V
Operating Current: 250mA
Screen: 160 * 105 LCD
Keyboard: membrane keyboard
Storage temperature: -10 C to 85 C
Operating temperature: 0 C to 70 C
Humidity: <90%
Upgrade Ports: USB port
Communication ports: COM port

1, Support Motorcycle:

"H-O-N-D-A", "S-Y-M", "K-Y-M-C-O", "Y-A-M-A-H-A", "K-A-W-A-S-A-K-I, "S-U-Z-U-K-I", "P-I-A-G-G-I-O", "V-E-S-P-A-", "P-G-O", "H-A-R-T-F-O-R-D", "A-E-O-N", "K-T-M", "D-A-Y-U-N "etc.

2, Support Function:

(1) ECU information
(2) Dynamic Data
(3) Read fault code
(4) Clear fault code
(5) Component Test
(6) Special function, such as: Accelerator reset, ISC reset, CO volume adjust etc

You can check the dynamic data by numerical curve change in waveform.

Update:

Easy update, only need to connect PC with U disk, Click "USB memory" in the manually, you can see PC find new U disk after you click OK. Then, you can copy the update file into U disk, then plug off U disk from PC side, then you can finish update according the notices. (When TF card could not reset ok, then please plug again, finish update as it said)

Package List:

1pc x SYM
1pc x KYMCO
1pc x SUZUKE-1
1pc x SUZUKE-2
1pc x PGO
1pc x YAMAHA
1pc x HARTFORD
1pc x AEON-1
1pc x HONDA
1pc x PIAGGIO/VESPA
1pc x POWER Cable
1pc x USB Cable
1pc x MAIN Cable
1pc x SD
