Launch X431 V+ Tablet Wifi/Bluetooth Global Version Full System Scanner

Launch X431 V+ PRO3 Wifi/Bluetooth Global Version Full System with Two Years Free Update Online !

2017 Version Launch X431 V+ ScanPad Diagnostic Tool Introduction

X-431 V+ is taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.

 Launch X431 V+ Highlights

1.High configuration of hardware,Android System,fast operating spped
2. 10.1 inch multi touch capacitor screen gives you better view of diagnose and data stream.
3. Supports 72 car brands from USA, European, Asian and so on.
4. Disgnose through wifi/Bluetooth and update by one click, bring more convenience to your update.
5. Multi-Language: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Traditional Chinese
6. Original package from LAUNCH with full time technical service and guarantee
7. Portable and reasonable PDA design, easy carry with small size.
8.Numerous Additional Functions: Photo, video, multimedia, other software application,etc.

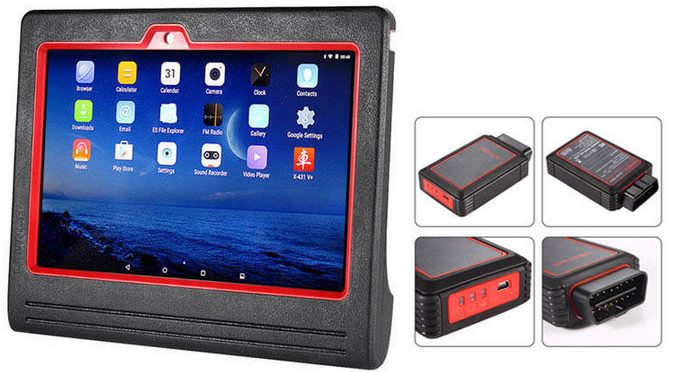

Launch X431 V+ Tablet Wifi/Bluetooth Global Version Features

Panel PC: High configuration of hardware , fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry

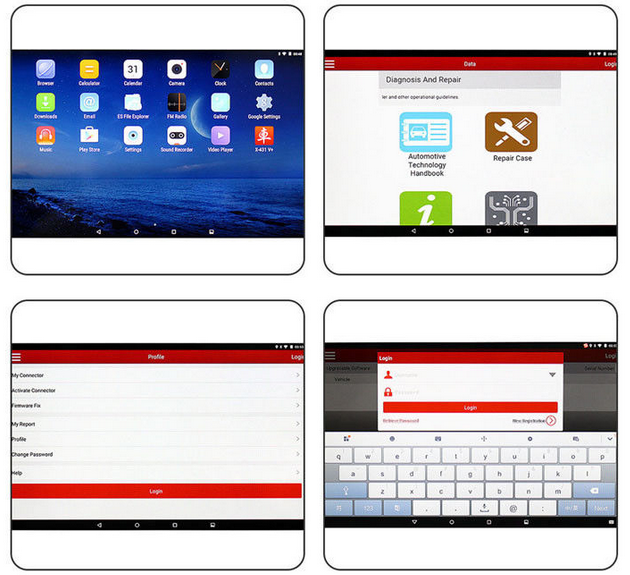

Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application,etc.

Launch X431 V Plus Specification

Pannel Computer Parameters:
CPU: HUAWEI HiSilicon Quod-core 1.2G HZ
Screen:10.1 inch Multi touch capacitor Screen
Screen Resolution:1280X800
Operation system:Android4.0
Memory:1G
Storage:8GB
Battery:Polymer Lithium-ion battery, 6600mAh
Camera :0.3M pixels front , rear 3.2M pixels
Operating Temperature :0°C~+45°C
Storage Temperature :-10°C~+45°C

DBSCar Connector Parameters:

Connection: Standard OBDII Interface, Micro USB 2.0
Typical Power Consumption:(12V)Static current 25 mA,
overall unit average current 35 mA
Working Temperature: - 20 °C~6 0°C
Storage Temperature: -30°C~70°C
Working Voltage: powered by vehicle battery, DC 9V-15V

LAUNCH X431 V+ Global Version Full System Package Including

Main Unit:

1pc x X431 V+ American host, RoHS

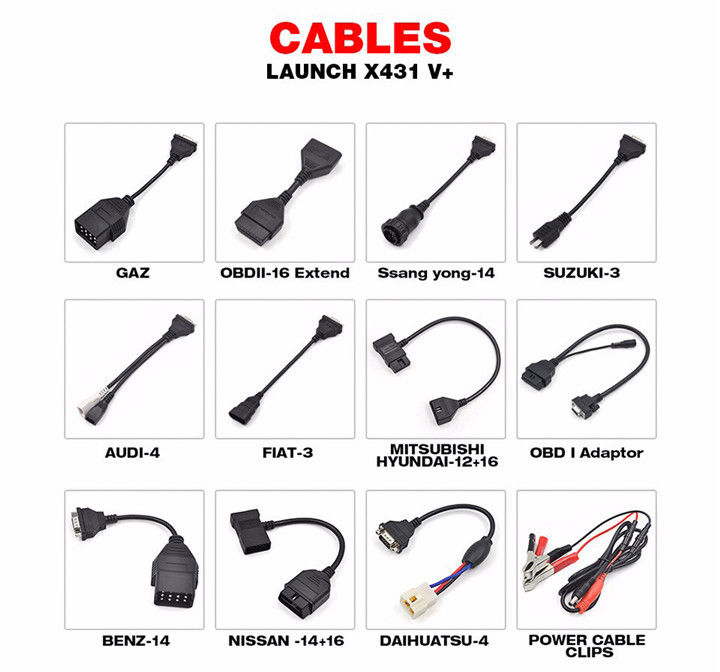

Connectors:

1pc x Android edition diagnostic connector (10 meters Bluetooth)
1pc x BENZ-38 diagnostic connector
1pc x DAEWOO-12 diagnostic connector integrated
1pc x AUDI-4 diagnostic connector linear
1pc x BENZ-14 diagnostic connector linear
1pc x BMW-20 diagnostic connector integrated
1pc x CHRYSLER-6 diagnostic connector integrated
1pc x DAIHATSU-4 diagnostic connector linear
1pc x FIAT-3 diagnostic connector linear
1pc x FORD-6+1 diagnostic connector integrated
1pc x GAZ diagnostic connector linear
1pc x GEELY-22 diagnostic connector integrated
1pc x GM/VAZ-12 diagnostic connector integrated
1pc x HONDA-3 diagnostic connector integrated
1pc x KIA-20 diagnostic connector integrated
1pc x MAZDA-17 diagnostic connector integrated
1pc x MITSUBISHI/HYUNDAI-12+16 diagnostic connector
1pc x NISSAN-14+16 diagnostic connector
1pc x SSANGYONG-14 diagnostic connector linear
1pc x SSANGYONG-20 diagnostic connector integrated
1pc x SUBARU-9 diagnostic connector integrated
1pc x SUZUKI-3 diagnostic connector linear
1pc x TOYOTA-17 diagnostic connector integrated
1pc x TOYOTA-22 diagnostic connector integrated
1pc x UNIVERSAL-3 diagnostic connector linear

Test Cable:

1pc x OBDII -16 extension 135mm, RoHS
1pc x OBD I Adaptor BOX switch wiring
1pc x LIGHTER
1pc x CLIPPER

Accessories:

1pc x MicroSD card, SanDisk 32G capacity, RoHS
1pc x X431 PIN envelope
4pcs x Clipper fuse 5*20mm
2pcs x Lighter fuse 6*30mm
