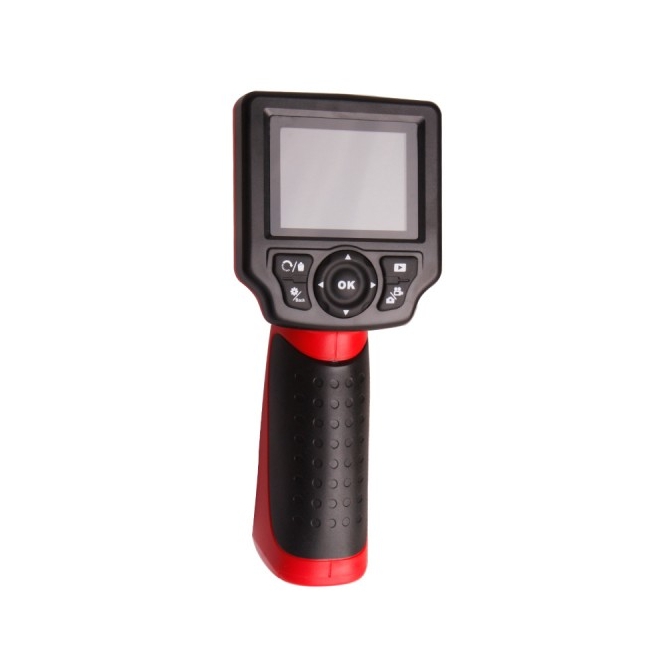

Autel Maxivideo MV208 Digital Videoscope With 8.5mm Diameter Imager Head Inspection Camera

Maxivideo MV208 Description:

Digital Inspection Videoscope MV208 8.5mm not only features a 2.4" full color LCD screen, auto focus and viewing capacity as close as 1" with crystal clear output,
but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery,
facilities and infrastructure in the safest, quickest and most cost-effective manner possible.

MV208 Features:

-Records and plays back still images and video clips
-2.4 " high resolution full color LCD display (320x240)
-Easy-to-use, multi-language interface
-Wide camera angle for images with 640x480 resolution
-With optional removable Micro SD cards, saves images and videos to take with anywhere
-On-screen horizontal/vertical reverse
-5x digital zoom for increased viewing
-Mini USB connector for uploading images and videos to a computer
-Narrow probe diameter available in either 8.5mm(0.33") or 5.5mm(0.22") and fits most spark plug holes
-White LED to illuminate the inspection area, with illumination control
-Views objects as close as 1"
-Oil and scratch resistant tempered glass lens
-1M (39.4") semi-rigid, but flexible watertight shaft
-4 x AA batteries
-Ergonomic and durable tool housing
-One-year limited warranty

MV208 Specifications:

Recommended use                 Indoor
Optimal viewing Distance        1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head
Image capture                           JPG images (640x480); AVI videos (320 x 240)
Screen type display                  2.4" TFT LCD
Display resolution                     320 x 240
Power supply                             4xAA alkaline battery(1.5V)
Tested battery life                      3-4 hours of continuous use
Recording medium                  Micro SD card (Micro SD card is optional and not included)
Imager head                              18.5mm (0.33") is standard and 5.5mm (0.22") is optional.
Waterproof                                 Imager head and cable to 3m (10')
Additonal ports                           USB, video out (TV-out) port
Operating temp.                       Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
Storage temp.                          -4°F to 158°F (-20°C to 70°C)
Video output                              Video output
TV out                                         NTSC, PAL

Package including:

1pc x Maxi Video MV208
1pc x Imager head and cable
1pc x USB Cable
1pc x Blow Molded case
1pc x Video out-cable(TV-out cable)
1pc x User's manual
