2018V 170823C OPCOM V1.99 With PIC18F458 Chip 2018V OP-COM OBD2 Diagnostic Tool Support Till 2018

XTY19202

0.3Kg

$85.00

85 reward points
Qty: Unit(s)
Related Download Files:



Highlights:

1. Firmware Version: V1.95
Software Version: 2018V 170823c
主界面
2. Language: English Only
3. PCB Board Microchip PIC18F458+FTDI FT232RL Chip+NEW NEC Japan Relay Chip
8
Read ECU and Diagnose Fault Code:
ECU阅读信息诊断出故障代码
Support car brands and years:
2015 Year:
2015年的车型
2016 Year:
2016年的车型
2017 Year:
2017年的车型
2018 Year:
2018年的车型
Function:

1. It covers almost all for Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vec-tra-C, for As-tra-H, for Za-fira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since for Op-el uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information.

Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Om-ega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Mul-tec, or for Bo-sch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers:

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

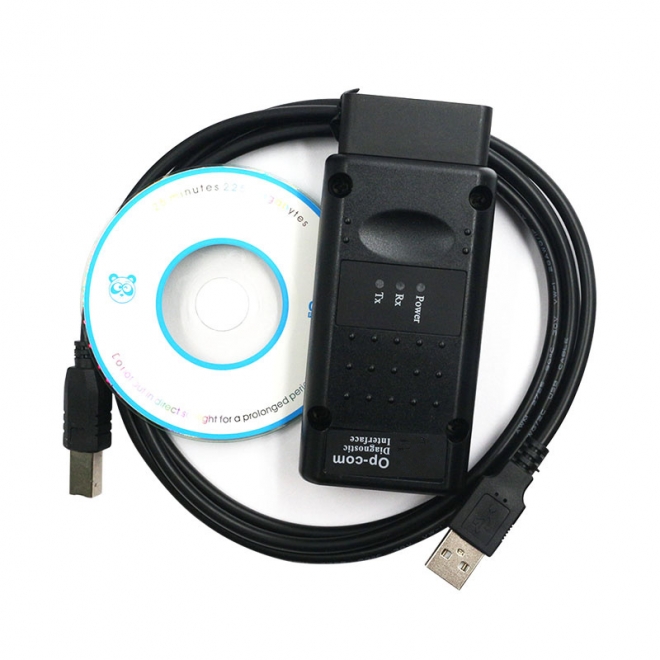

Package list:

1pc x OP COM Interface

1pc x USB Cable

1pc x CD



Software shows:

2015年的车型2016年的车型2017年的车型2018年的车型ECU阅读信息诊断出故障代码支持年限主界面
