GM TECH II With One Card Candi TIS2000 Diagnostic Tool For SAAB OPEL SUZUKI ISUZU

XTY14017

3.75Kg
Free Shipping

$319.00

319 reward points

Car Model









Shipping Agent




Language








Qty: Unit(s)
Related Download Files:
GM-TECH2-self-test-instruction.pdf  (555.3K)
CANDI-self-test-manual.pdf  (586.6K)



GM TECH II For GM SAAB OPEL SUZUKI ISUZU Holden Save More Ship Cost

Gm Tech II Introduction:

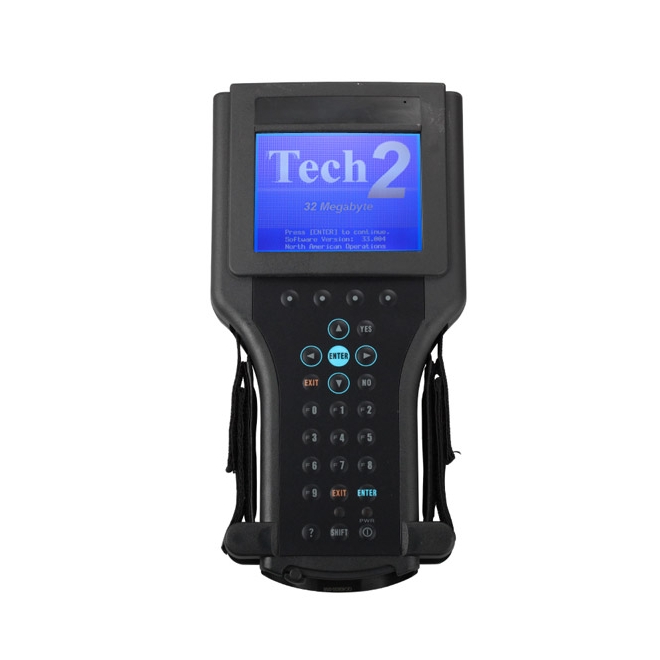

Model name:GM tech2
Software Version:Different model,different version.
Update:By card.
Car Models:GM/SAAB/OPEL/SUZUKI/ISUZU/Holden
Languages:English/ German/ Spanish/ Japanese/ French/ Italian and others.
Functions:Diagnostic interface
Connection:By OBD2.

Install/User Note:

1.Only work with our 32MB card,don't take the card out ,or try to copy it.
2.TIS2000 CD only work with GM model,language only English.
3.This package comes with 1 memory card and contains 1 software.If You Need more Software, Please Buy Additional 32MB Memory Card.
4. GM Tech2 Only Supports Cars, No Trucks
5. GM tech 2 is for old models before 2014,if you want to do new ,you can buy our GM MDI.

TECH2 Software Version:

-GM

GM- English            33.004     1991- 2013
GM- Germany         32.008      1991- 2013
GM- Spanish           32.008     1991- 2013
GM- Japanese        32.008     1991- 2013
GM- French              32.008     1991- 2013
GM- Thai                   32.008     1991- 2013
GM- Portuguese      32.008     1991- 2013
GM- Korean              32.008     1991- 2013

-SAAB

SAAB- English     148.000

-OPEL

OPEL -English       V165         1997- 2014
OPEL- Italian         133.001     1997- 2012
OPEL -Germany    85.001       1997- 2008
OPEL- Spanish      91.001       1997- 2009

-Holden

HOLDEN- English  V149      1999- 2013

-SUZUKI

SUZUKI- English   01.210.020

-ISUZU

ISUZU- English   CAN-BUS 107.021  2010-  ( CAN-BUS support car models after 2010)
ISUZU- English   K-Line  11.62   1996- 2013 ( K-line support car models from 1996 to 2011)
( If you want ISUZU software, please tell us you want CAN-BUS or K-line)


GM TECH2 Features:

1) GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2) Support for on-board diagnostics on all GM systems 1992 thru current year.
3) Removable hardware modules provide insurance against scan tool obsolescence.
4) Large, easy-to-read backlit screen.

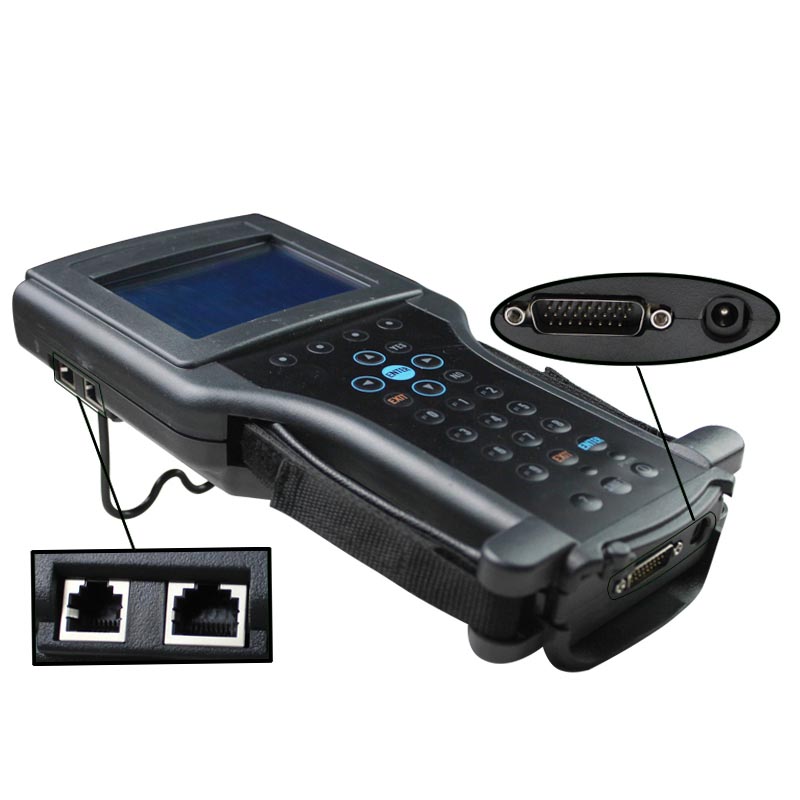

5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

Tech 2 Specifications

1) Microprocessor: 32 bit,16 MHz
2) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
3) Communications: Integral RS232 communication port.
4) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface;

You will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flash diagnostic link cable and the OBD adapter.

Once the module is connected, it can be used on all GM vehicle applications ,even those vehicles using other platforms such as OBD I and OBD II.

GM vehicles utilize the CANdi module interface

05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

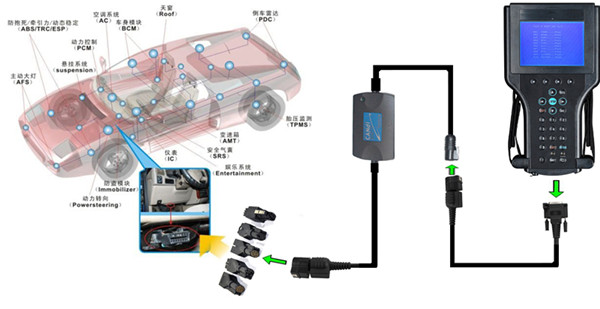

Connection with candi:

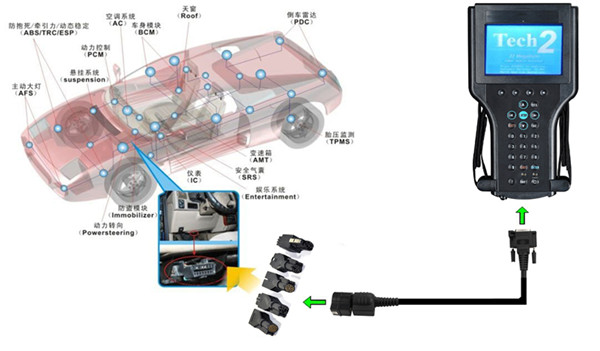

Connection without candi:

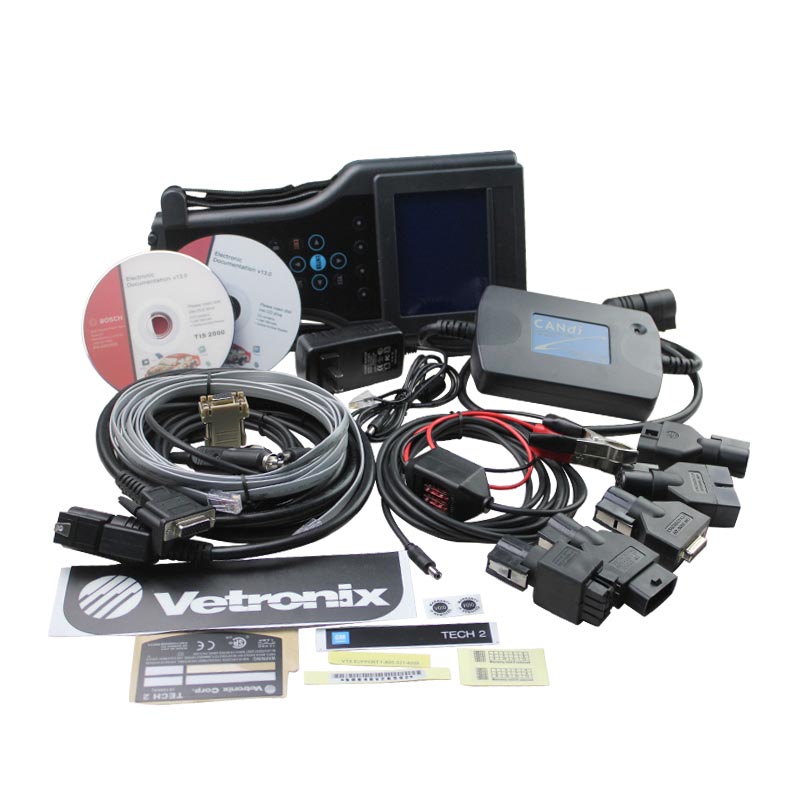

TECH 2 Package list:

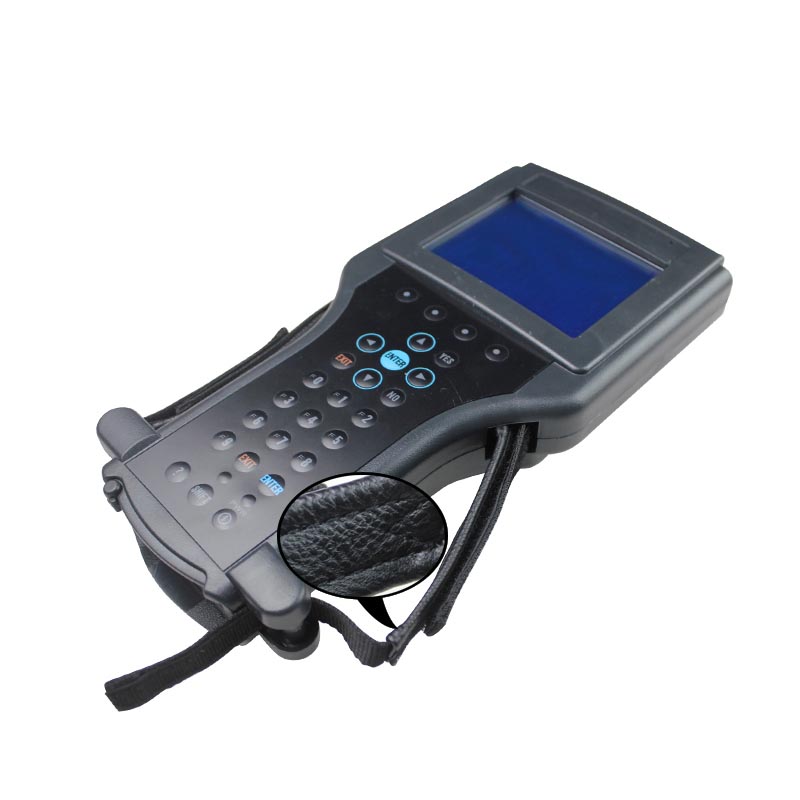

1pc x Tech-2 Flash Tester
1pc x 32 MB PCMCIA Card with GM OE Applications

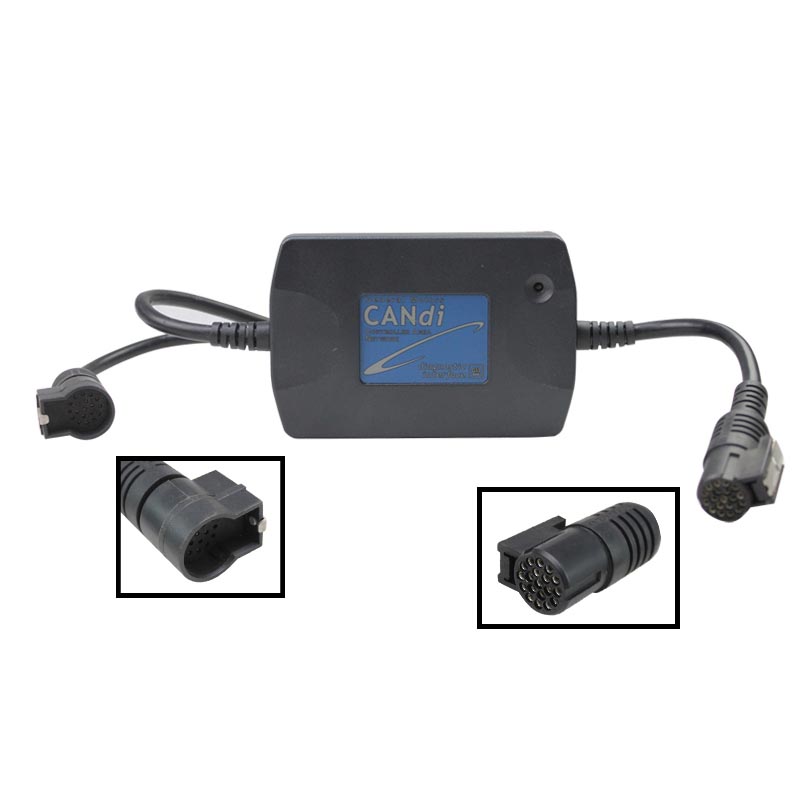

1pc x CAN diagnostic interface module(CANdi) and instruction sheet download (199.2 kb)
1pc x RS232 cable and user`s manual
1pc x RS232-DB9 adapter

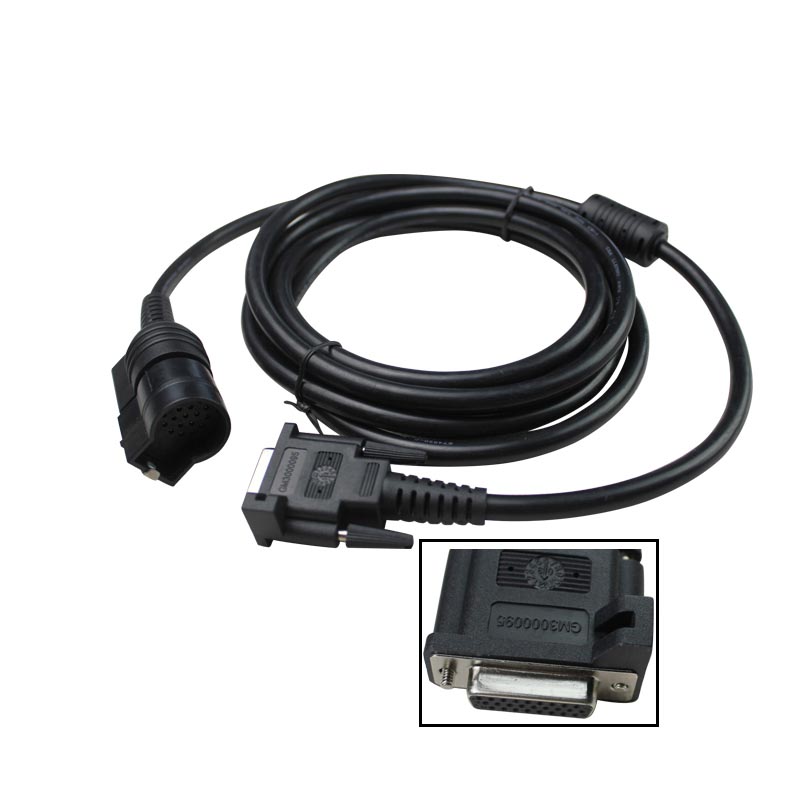

1pc x DLC Cable, DLC Loopback Adapter
1pc x 12V Cigarette Lighter Power Cable

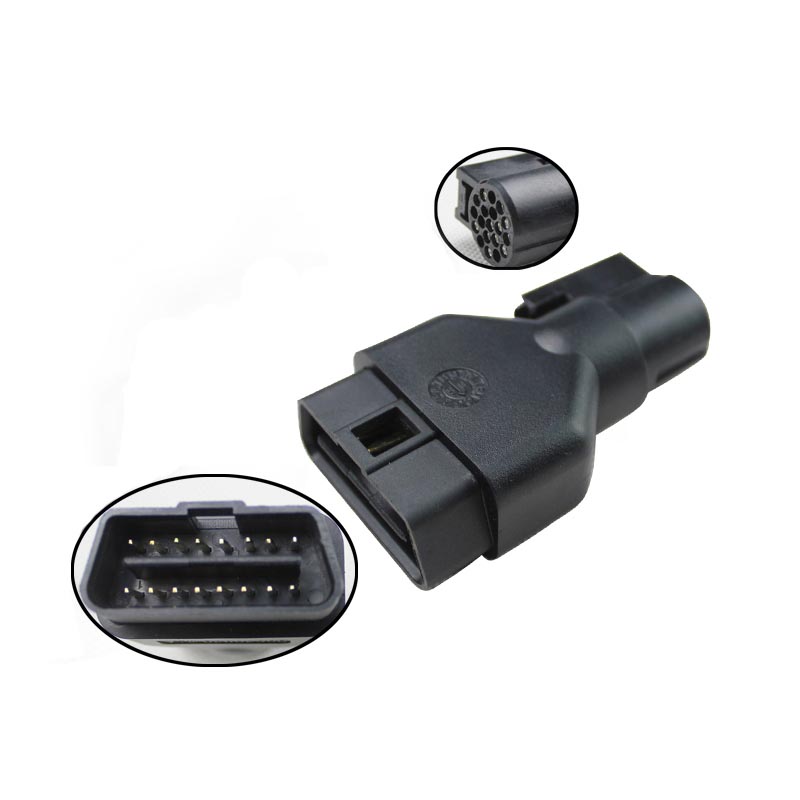

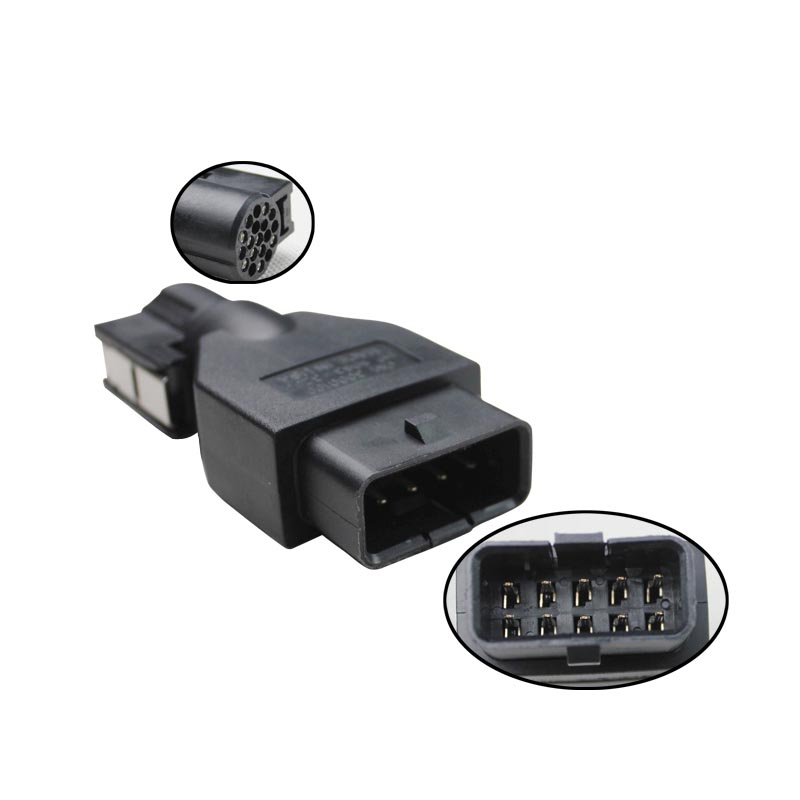

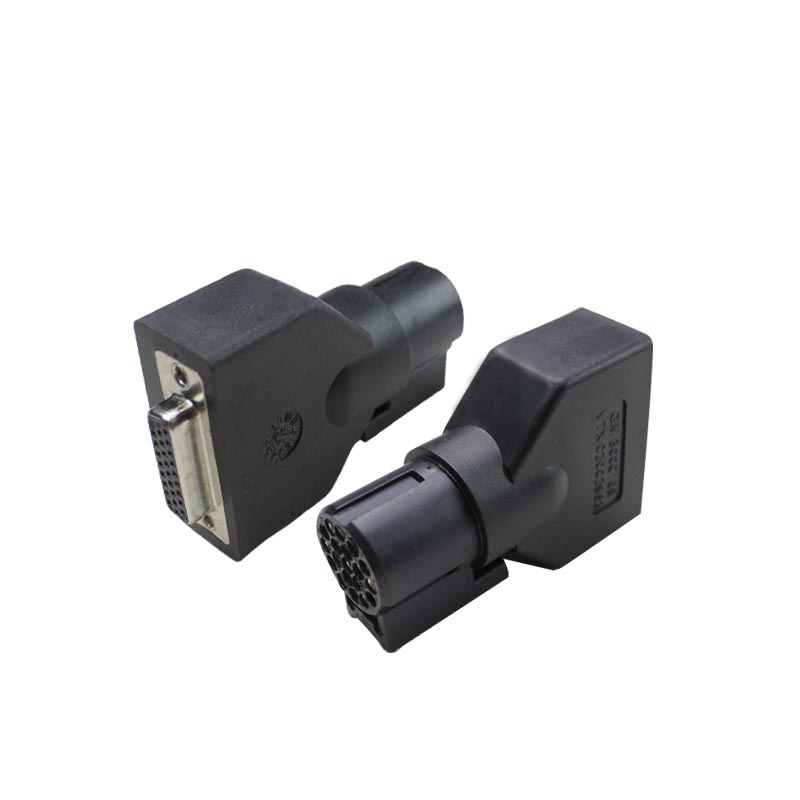

1pc x SAE 16/19 Adapter

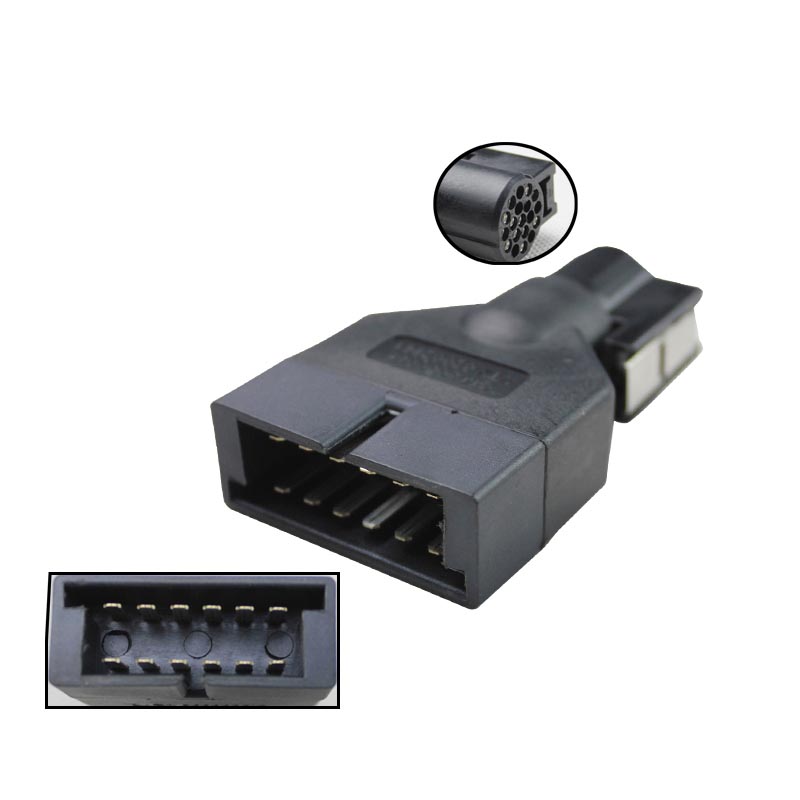

1pc x NAO 12/19 Adapter
1pc x Battery Power Cable
1pc x TIS 2000 CD
